22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip
22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip
22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip
22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip
Specifications
Certification :
BV,SGS, CE,ISO9001
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS / MONTH
Delivery Time :
40 Working days
Packaging Details :
Naked and fixed into container
Price :
Negotiation
Condition :
New
Type :
Tile Forming Machine
Tile type :
Colored Steel / PPGI / Galvanized Steel Coil
Voltage :
380V 60HZ or at your requirement
Power :
15.5+7.5Kw
After-sale :
Engineers available to service
Description

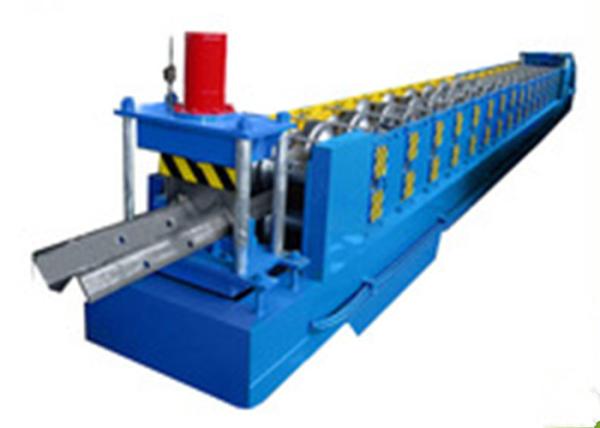

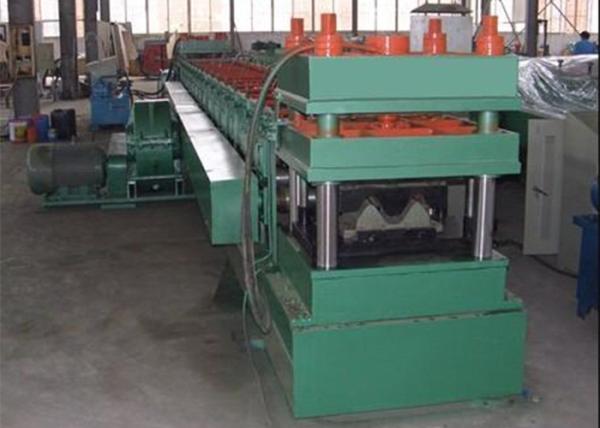

Highway Guardrail High Quality Roll Forming Machine, Galvanized Sheet Metal Manufacturing Machine

Machine parameter

NO. Guardrail Roll Forming Machine
1 Suitable to process Steel strip
2 Effective width 480mm
3 Feeding width 310mm
4 Forming steps 18 stands
5 Shaft material 45# forged steel, hard chrome plated within 0.05mm
Roller material Gcr15,Quenched
6 Diameter of shaft 85mm
7 Main frame 400 I-beam steel
8 Main motor power 15.5 kw
9 Pump power 7.5 kw
10 Sidewall Thickness 22mm
11 Drive type Gear box transimission
12 Connection Universal coupling
13 Cutting Blade Cr12 mould steel
14 PLC brand Delta,Taiwan
15 Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Highway guardrail sheet sizes

22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip
