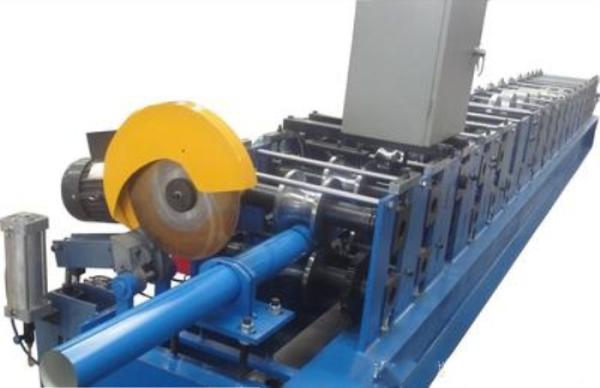

Full Automatic Downspout Roll Forming Machine With 0 - 15m / Min Forming Speed
Full Automatic Downspout Roll Forming Machine With 0 - 15m / Min Forming Speed
Specifications
Certification :
BV,SGS, CE,ISO9001
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30 SETS / MONTH
Delivery Time :
30 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Tile Forming Machine
Production :
0-15m/min
Power :
11 kw+5.5kw
Voltage :
380V 60HZ or at your requirement
After-sale :
Engineers available to service
Price :
Negotiation
Description

Downpipe / Gutter Roll Forming Machine,New Style Forming Device For Downpipe and Bender, Downpipe Roll Forming Machine

1.Main Accessories of the roll forming machine

1 Decoiler(manual or hydraulic for options) 1 set
2 Feeding device 1 set
3 Main Forming Machine 1 set
4 Hydraulic cutting device 1 set
5 Hydraulic Station 1 set
6 PLC computer control system 1 set
7 4m Run Out Table 1 set

2.Main Technicial Parameter of the roll forming machine

No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 200-600mm
3 Rollers 24rows
4 Dimensions 8.6*0.8*1.2m
5 Power 4+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller 5tons
9 Weight About 5 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 4.5 T

FAQ

1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and have skilled technicians available across the world.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology to improve our machines constantly. We have experts from domestic-leading machinery corporation as well as sals elites.
Wokers, traders, designed as a family to insure best interest of our clints.
3), Q: How does your factory do regarding quality control?
A: Quality is priority. YIBO people always attach great importance to quality control during the whole process. Every product will be fully assembled and carefully tested before packed.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
5), Q: Will you deliver the right goods as ordered?
A: Yes, we will. The core of our company culture is honesty and credit. We are 24 hours with you.
