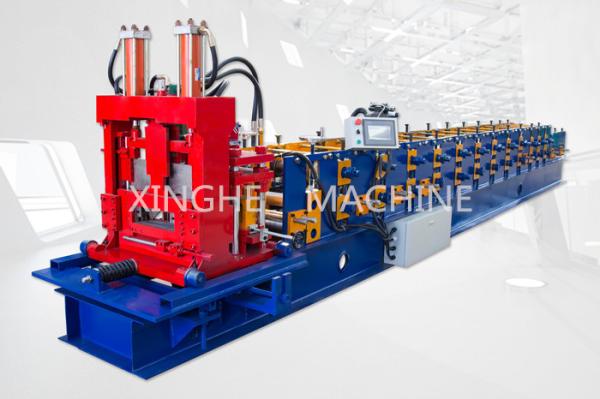

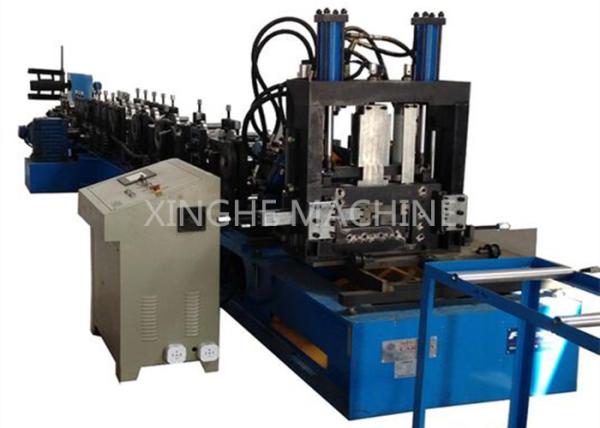

80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin
80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin
80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin
80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin
Specifications
Brand Name :
XINGHE
Model Number :
XH-C purlin
Certification :
BV,SGS, CE,ISO9001
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS / MONTH
Delivery Time :
20 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Steel Frame & Purlin Machine
Tile type :
Galvanizes steel
Voltage :
380v 50hz 3phase
Power :
11 kw+5.5kw
After-sale :
12 months
Description

1. The Chart of Process flow

80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin

Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables

2. The equipment including

Roll forming machine 1 set
Hydraulic cutter 1 set
Electrical control system 1 set
Hydraulic system 1 set
Normal run out table 3 PC 1m*1m
Manual de-coiler 1 set Max. loading 5 T

3 Technical specification and details

(1) Hydraulic Ue-coiler

Un-power: manual de-coiler; Max. Capacity: 7T

Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm

Manual power expands the coil inner surface.

(2) Roll forming machine

Description
Product Name C/Z Purlin Rool Forming Machine
Machine Size 11000mm*1500mm*1000mm(Actual size based)
Machine Weight About 10 T
Frame Materials 350H steel
Middle plate thickness 14mm
Forming Shaft Diameter 80mm
Material 40Cr Heat treatment
Forming roller Gr15Bearing steel, whole quenching, HRC58
Cutting System Hydraulic Cutting
Drive mode 6 points sprocket, chain / 1 inch sprocket, chain
Main Engine power 11.0W with cycloidal reducer
Fast moving motor power 2.2kw/set (A total of one)
Forming Rows 18 rows
Forming Speed 10-16m/min
Pressing Thickness 1.5-3mm
Coil material Galvanized Coils: Q195-Q235
Punching die, cutting machine blade material High quality Cr12MoV
Punching, cutting machine cylinder number 2
Hydraulic station power 5.5kw
Hydraulic pressure Max30Mp
Electric Control System International, domestic brands, mainly by Panasonic, Yaskawa, OMRON brand
Transducer SIEMENS
Encoder OMRON
Product tags

cz purlin roll forming machine

,

z-purlin roll forming machine

,

c z purlin roll forming machine
