Specifications
Brand Name :
XINGHE
Model Number :
XH312
Certification :
BV,SGS, CE,ISO9001
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 SETS / MONTH
Delivery Time :
30 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Tile Forming Machine
Tile type :
Colored Steel / PPGI / Galvanized Steel Coil
Power :
4.0+4.0kw
Voltage :
380V 60HZ or at your requirement
Dimension :
6500*1000*1200mm
Machine Weight :
3.0Tons
Warrenty :
12 months warrenty and long-life after-sale service
After-sales Service :
Engineers available to service machinery
Middle plate thickness :
14mm
Control System: :
PLC(imported Brand)
Roller Material: :
45#steel Chrome Plated
Shaft Material: :
5mm Chrome Coated
PLC Automatic Zinc Roofing Roll Forming Machine/Corrugated Roof Sheet Making Machine/ Roof Panel For :
75mm
Cutting Blade Material :
Cr 12 High Grade Steel
Description

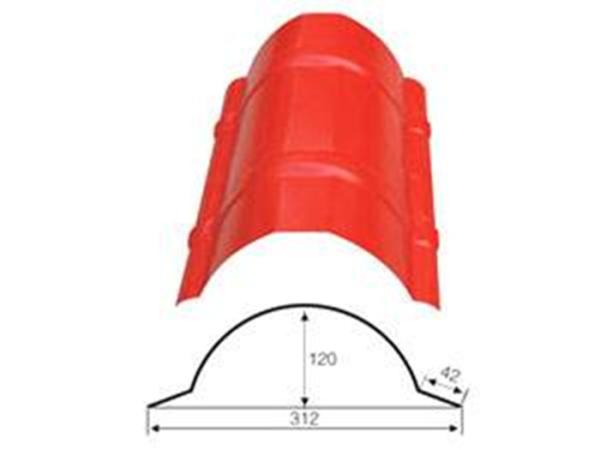

The ridge cap roll forming machine is a large roof tile equipment special floor plate equipment imported computer motherboard and relay, frequency converter, the production efficiency can reach 5-8m/min, and high rate of finished products. Roofing material is light, beautiful, environmental protection, waterproof, fireproof, sound insulation, etc..

ridge cap roll forming machineTechnical parameters:
1 Cutting&Hydraulic type Double guide pillar
2 Hydraulic motor power 4kw,4kw
3 Hydraulic Pressure 10-12MPa
4 Voltage 380V /3phase/ 50 HZ (or as your requirement)
5 Cutting drive Decelerating motor + Chain drive gear all by high-frequency
6 Control System Panasonic /Siemens / Schneider / Delta PLC
7 Length measurement Encoder
8 Main Frame 300mm/350mm H-Beam or 350mm
9 Backboard Thickness 17mm/200mm
10 Chain Size 1inch/2inch
11 Feeding Material Better as your drawing or from our designer
12 Feeding Thickness 0.18mm-1.0mm
13 Effective width Better as your drawing or from our designer
14 Productivity 5-8/min
15 Roll Station 13ows& 14(according to different design)
16 Roller Diameter 70mm/75mm(depend on different design)
17 Roller material 45# steel
18 Cutter material Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees
19 Total Weight 2t-12t
20 Package of machine Waterproofing membrane, standard export packing
21 ridge cap roll forming machine of the Components

Manual decoiler-------------------1 set(5t)

Guiding Platform------------------1 set

Coil Strip Leveler------------------1 set

Main Machine of Roll Forming------1 set

Hydraulic Station------------------1 set

Supporter Table-------------------1 set

Coil Strip Leveler------------------1 set
23 ridge cap roll forming machine machine technical parameters can be changed, according to customer's need.
