Dywidag type ductile casting wing nut for formwork construction
Dywidag type ductile casting wing nut for formwork construction
Specifications
Place of Origin :
China
Brand Name :
Longquan
Certification :
ISO9001:2008
Model Number :
LQ-041
MOQ :
None
Price :
Ask LQ
Packaging Details :
Wing nuts in bags
Delivery Time :
20 days
Payment Terms :
T/T; L/C
Supply Ability :
Large Qty.
Description

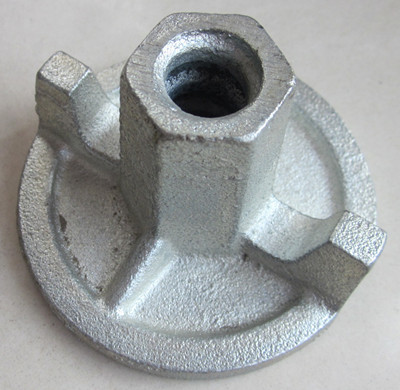

Dywidag type ductile casting formwork wing nut for formwork construction, formwork accessory

The Wing Nuts are available in different diameters for different thread bars(Bar Ø15, Ø20), as well as differs from the various pedestal allowing a direct bearing on walings. It can be screwed on or loosened using a hexagon wrench, thread bar or hammer.
The max. load of Ø15mm wing nut can reach over 190KN to meet European standard.
Available in various sizes and types.

Article No. Bar Ø
(mm)		 Plate Ø
(mm)		 Height/Hex
(mm)		 Weight
(kg)
LQ-041/90 15 90 55/27
LQ-041/100 15 100 55/27
LQ-041/110 15 110 55/27
LQ-041/120 20 120 60/36
Cast, galvanized; Customized size available.
For barØ15, working load 90KN to DIN 18216, breaking load>190KN
For barØ20, working load 150KN to DIN 18216, breaking load>350KN

We, Hebei Longquan Industry Co., Ltd. (formworkparts), are the manufacturer of formwork parts and scaffolding accessories from China. We mainly supply wing nuts, tie rod, water stop, hex. nuts, bar couplers, rapid clamps, frame formwork clamps, jack base, U head jack, prop nuts, prop sleeves, and other scaffolding fittings.
