Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell
Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell
Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell
Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell
Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell
Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FNL
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5900pcs/month
Certification :
CE
Usage :
Weight Measurement Sensor
Type :
Platform Load Cell
Output :
Analog Transducer
Capacity :
60kg 100kg 200kg 350kg
Description

Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell

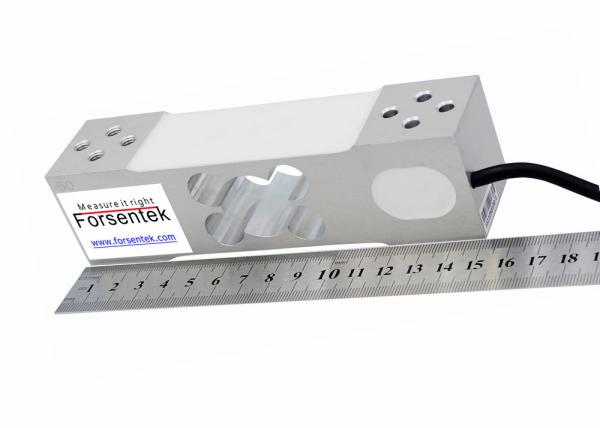

Off-center weight sensor FNL is a strain gauge based weight sensor which offers 0-60kg / 0-100kg / 0-200kg / 0-350kg four measuring ranges to choose from.High accuracy load cell FNL delivers maximum 0.015% non-linearity of the full scale.Loadcell FNL is corner trimmed for platform sizes up to 400x400mm which makes it suitable for off-center load measurement. Load cell sensor FNL can deliver stable performance within the declared working temperature range thanks to its temperature compensation process.You may find FNL suitable for applications such as beehive weight measurement, packing machines, platform scales, feeding machines and so on.

Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell

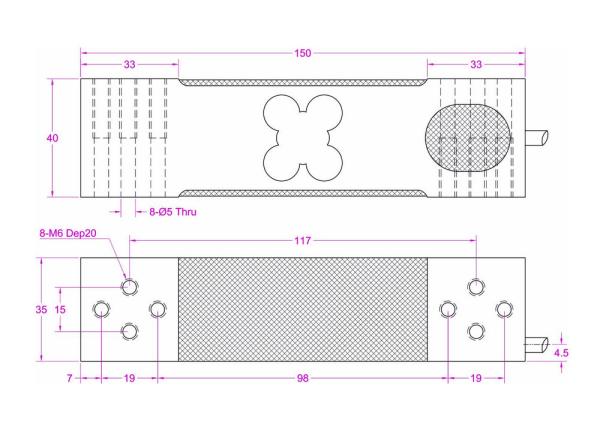

Dimensions(Unit in "mm",same size for 350kg/200kg/100lg/60kg)

Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell

Specifications

Capacity 60kg / 600N / 130lb
100kg / 1kN / 220lb
200kg / 2kN / 440lb
350kg / 3.5kN / 770lb
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø5*1500mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell

Weight Sensor 60kg 100kg 200kg 350kg High Accuracy Platform Load Cell

Click here to download datasheet
