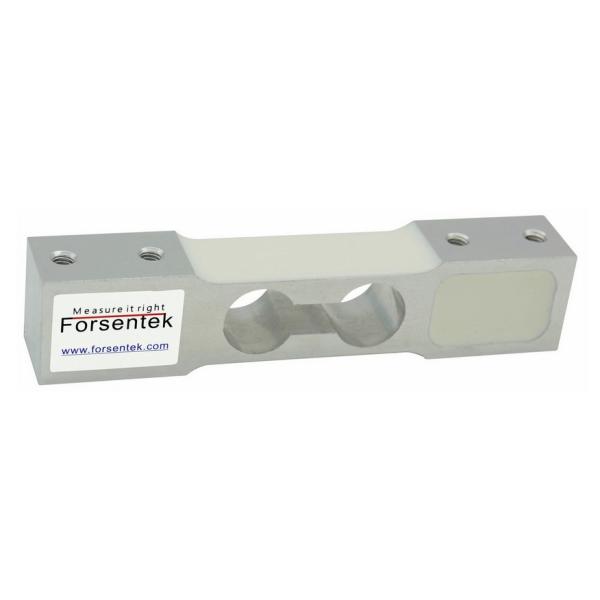

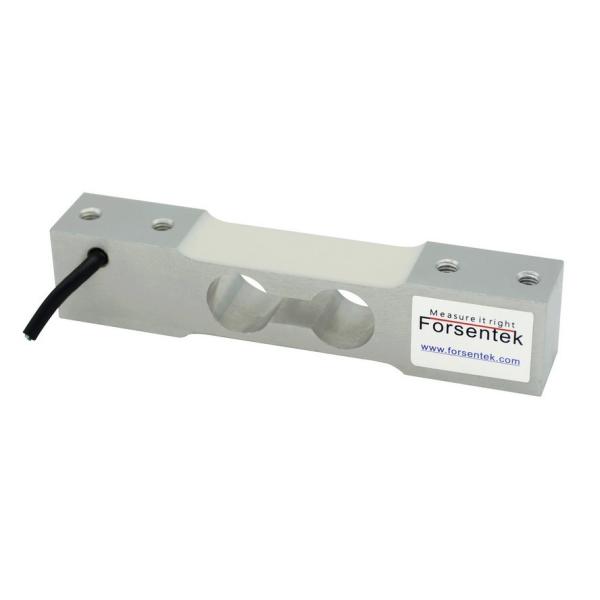

Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor
Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor
Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor
Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor
Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor
Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FNK
MOQ :
3pcs
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
7800pcs/month
Certification :
CE
Usage :
Measure weight
Style :
Single point load cell
Output :
Analog Sensor
Capacity :
3kg 5kg 10kg 15kg 20kg
Description

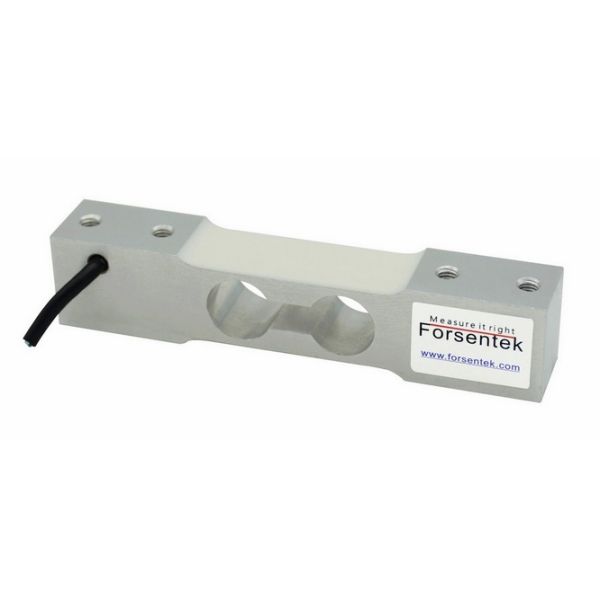

Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor

Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor

Features:

  • Aluminum construction,small size
  • Strain gauge technology,high accuracy
  • Corner trimmed for 200*200(mm) platform
  • Widely used for price computing scales,counting scales,bench scales.etc.

Dimensions

Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor

Specifications

Capacity 3kg 5kg 10kg 15kg 20kg
Rated output 2.0±10%mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 1130±30 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*400mm 4-core
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Load sensor 3kg 5kg 10kg 20kg

Single Point Load cell 3kg 5kg 10kg 20kg Compact Weight Sensor

Click here to download datasheet
