Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Elevator load cell for hoisting devices overload protection
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FDE
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3000pcs/month
Usage :
Measure force
Theory :
Strain gauge load cell
Output :
Analog Sensor
Capacity :
12KN 9.5KN 7KN
Description

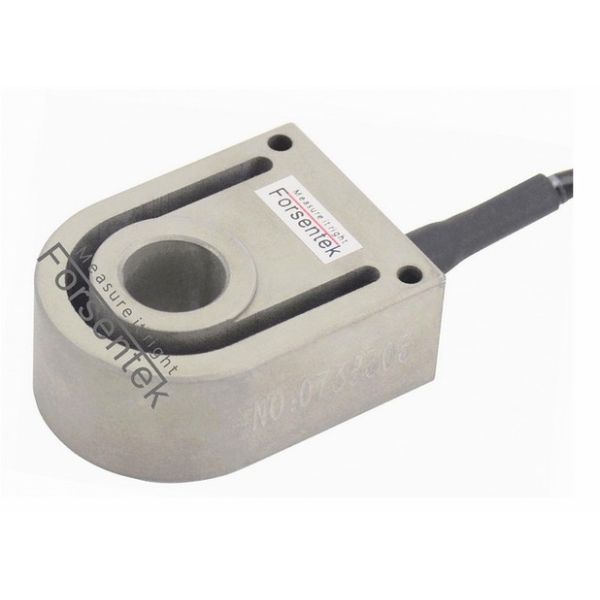

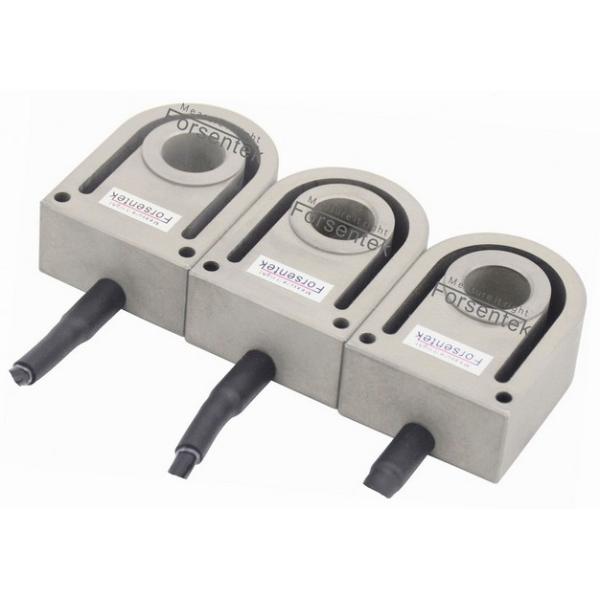

Elevator load cell for hoisting devices overload protection

Elevator load cell for hoisting devices overload protection


Features

  • Donut structure,low profile,compact size
  • Alloy steel construction,analog output
  • Compression force measurement
  • Overload protection for elevators and other hoisting devices

Application

  • Clamping force measurement
  • Elevator overload protection,holisting device overload protection
  • Auto equipment
  • Assembly line

Elevator load cell for hoisting devices overload protection

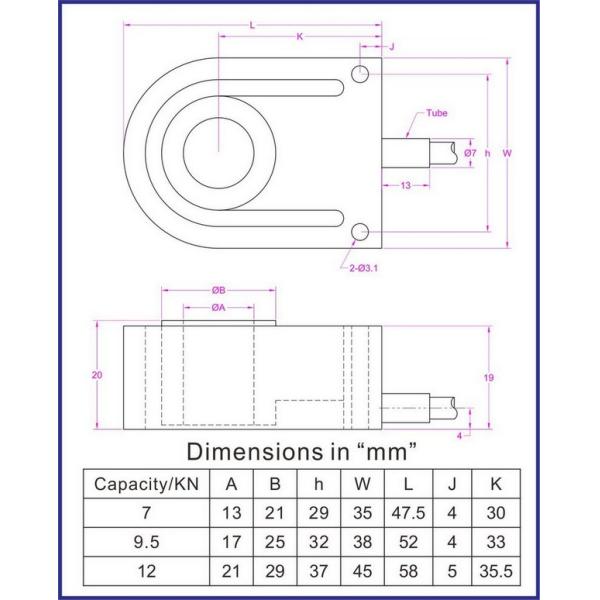

Dimensions
Elevator load cell for hoisting devices overload protection
Specifications

Capacity7KN 9.5KN 12KN
Rated output2.2mV/V
Excitation3-10V
Zero balance±0.5mV/V
Nonlinearity±1% R.O.
Hysteresis±1% R.O.
Nonrepeatability±0.3% R.O.
Creep(10min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.05% R.O./oC
Temperature shift span±0.01% R.O./oC
Input resistance1000±100 ohms
Output resistance1000±20 ohms
Insulation resistance>2000M ohms
Ingress protectionIP64
Material of elementAlloy steel
CableØ4*2000mm
Wiring codeRed--E+ Black--E- Green--S+ White--S-

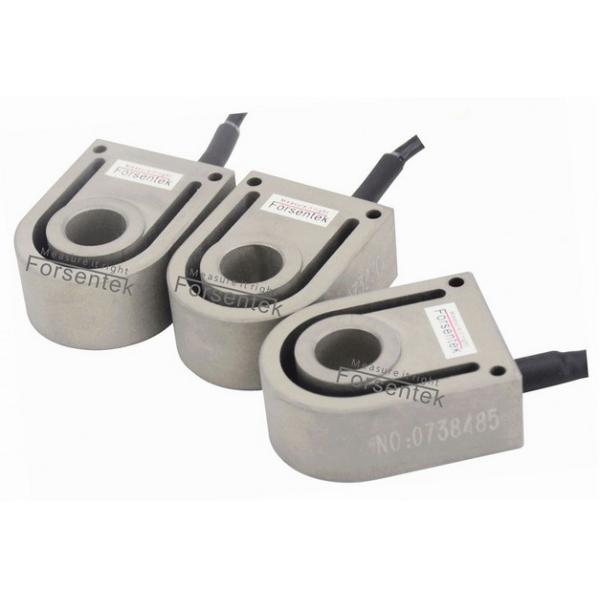

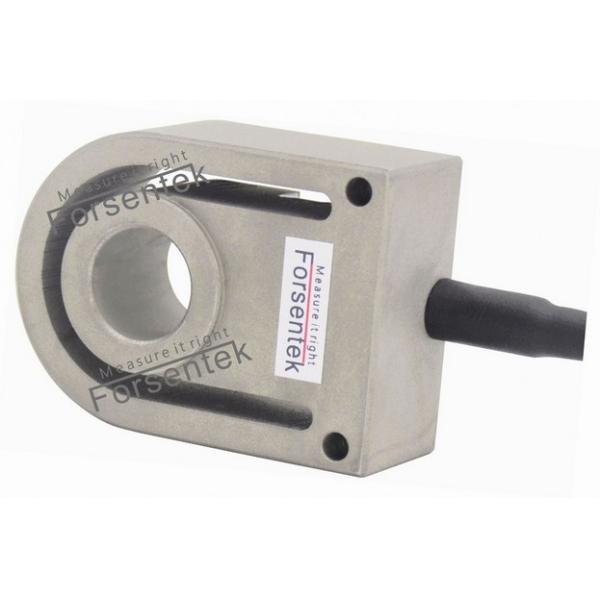

Donut load cell for overload protection

Elevator load cell for hoisting devices overload protection

Elevator load cell for hoisting devices overload protection

Elevator load cell for hoisting devices overload protection
