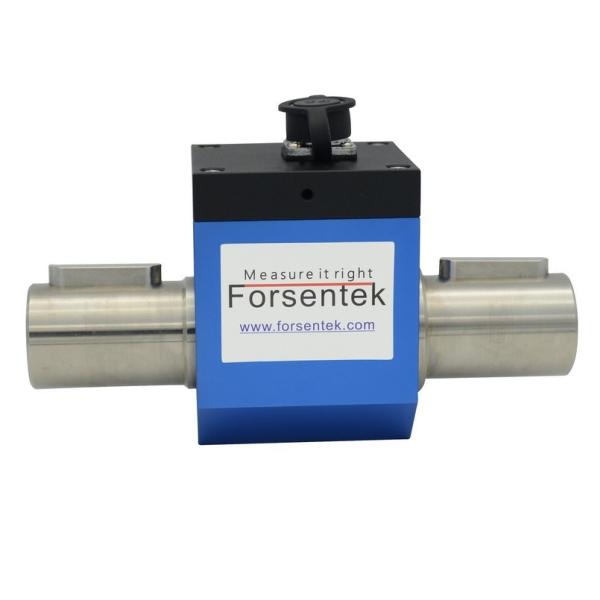

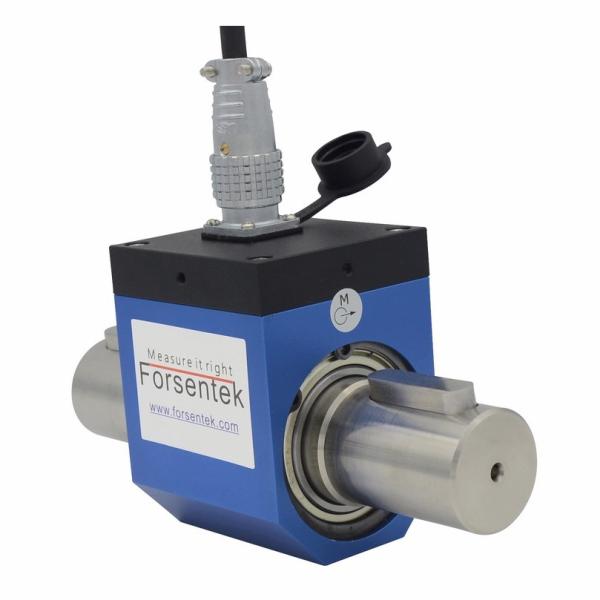

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FY01
MOQ :
1pc
Packaging Details :
1pc/box
Delivery Time :
3~20 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Certification :
CE
Usage :
Measure torque
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Torque measurement direction :
Clockwise&Counterclockwise
Description

Rotating torque measurement sensor measuring torque

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Features

  • Strain gauge technology,analog output
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotating torque measurement,shaft torque measurement,motor torque measurement

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Dimensions

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Specifications

Capacity 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Rated output 1.2-2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05 R.O.
Creep(30min) ±0.1 R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

Torque transducer measure rotating torque

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque

Rotating torque measurement sensor 500NM 300N-M 200NM 100NM measuring torque
