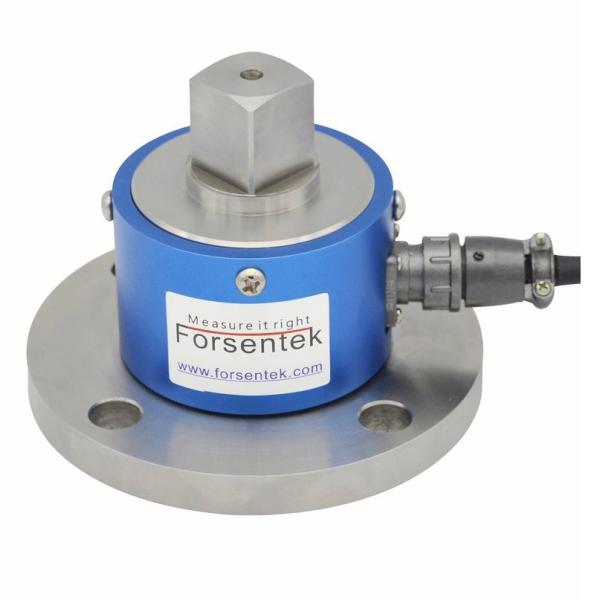

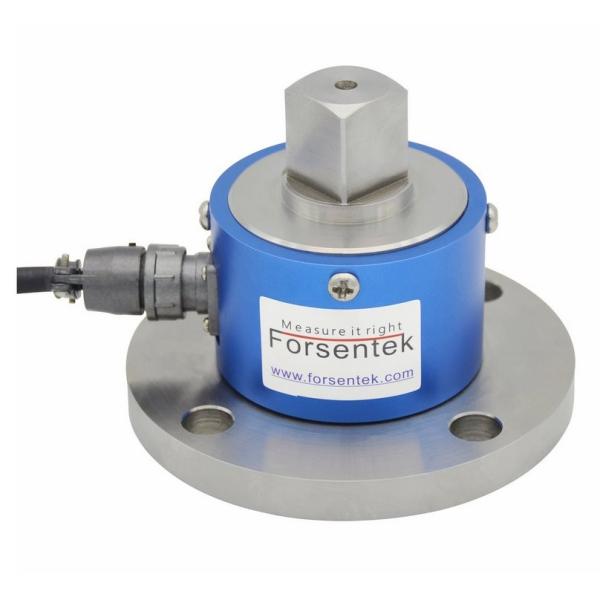

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FT04
MOQ :
1pc
Packaging Details :
1pc/box
Delivery Time :
3~20 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Usage :
torque measurement device
Theory :
Strain gauge torque measurement device
Output :
Analog Sensor
Description

Torque measurement device torque transducers

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Features

  • Alloy steel construction
  • Square drive to flange mounting,easy to install
  • Strain gauge technology,high accuracy
  • Non-rotating torque measurement

​Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Dimensions

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Specifications

Capacity 500NM 300NM 200NM 100NM 500NM 20NM
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable

Ø5*3000mm 4-core shielded cable

with mating connector
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

Torque measurement device torque transducer

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers

Torque measurement device 500NM 300NM 200NM 100NM 50NM torque transducers
