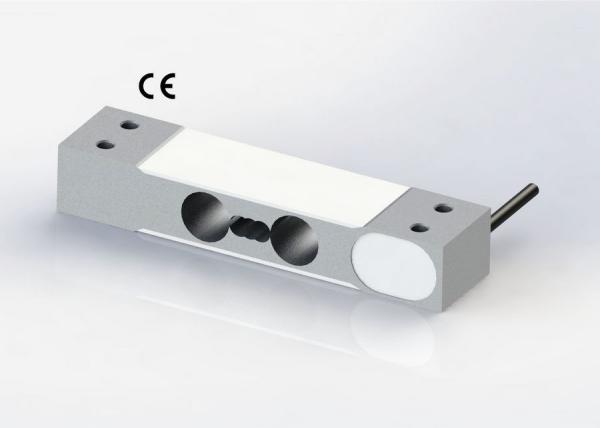

Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FH03
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
8000pcs/month
MOQ :
1pc
Packaging Details :
Carton
Certification :
CE
Usage :
Weight measurement
Type :
Off center weighing sensor
Output :
Analog
Description

Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer

Features:

  • Aluminum construction,strain gauge based,high accuracy.
  • Static load measurement.

Dimensions:

Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer


Specifications

Capacity

3kg / 30N / 6.6 lb

6kg / 60N / 13.2 lb

10kg / 100N / 22 lb

20kg / 200N / 44 lb

40kg / 400N / 88 lb
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 410±10 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*400mm 4-core
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

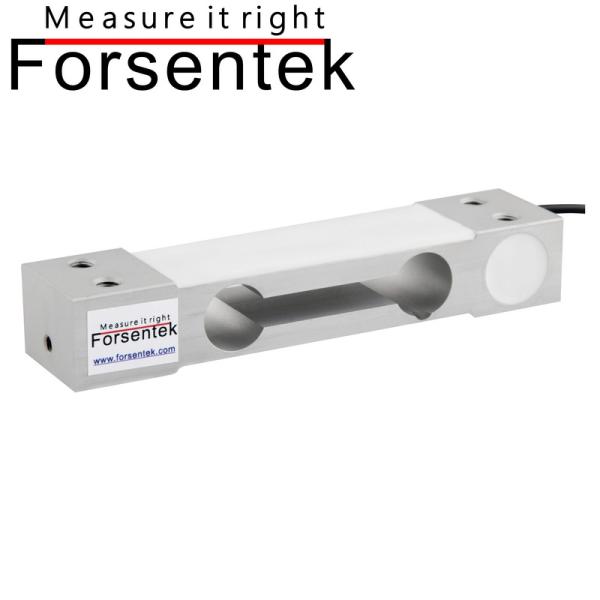

Load cell sensor

Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer

Click here to download datasheet
