500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
Specifications
Brand Name :
Forsentek
Model Number :
FTF
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Usage :
Torque measurement
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Capacity :
100NM-1000NM
Description

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm


Features

  • Flange to flange mounting,thru hole structure
  • Strain gauge based,analog output
  • 6-wire connection as stardard,4-wire connection also available
  • Reaction torque measurement
  • Customizable

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
Parameters

Rated capacity

100NM 200NM 300NM

500NM 700NM 1000NM

Rated output 1.0mV/V
Excitation 3-15V
Zero balance ±3% F.S.
Non-linearity ±0.2% F.S.
Hysteresis ±0.2% F.S.
Non-repeatability ±0.2% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.01% F.S./oC
Input resistance 700±50 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element <500NM Aluminum alloy
>300NM Stainless steel
Cable Ø5.8*4000mm 6-core shielded cable
Wiring code

Red--Exc+ Black--Exc-

Yellow--Sen+ Blue--Sen-

Green--Sig+ White--Sig-

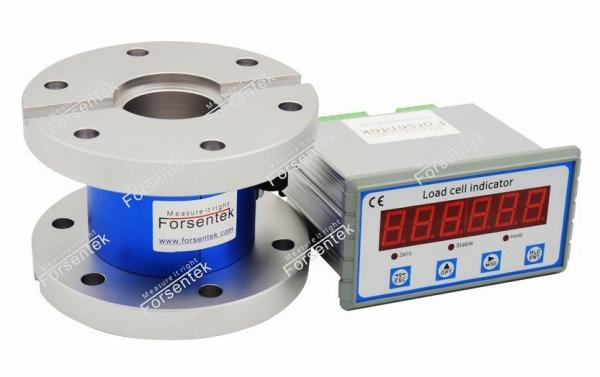

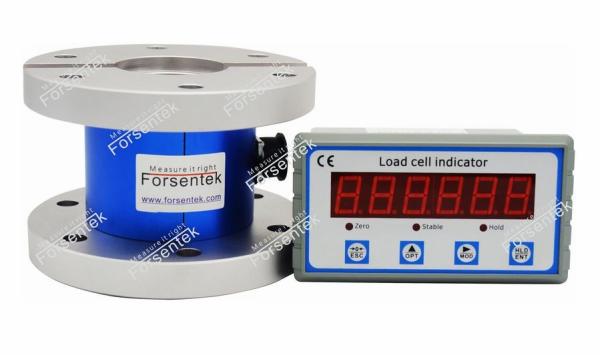

Through hole torque sensor torque measurement unit

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

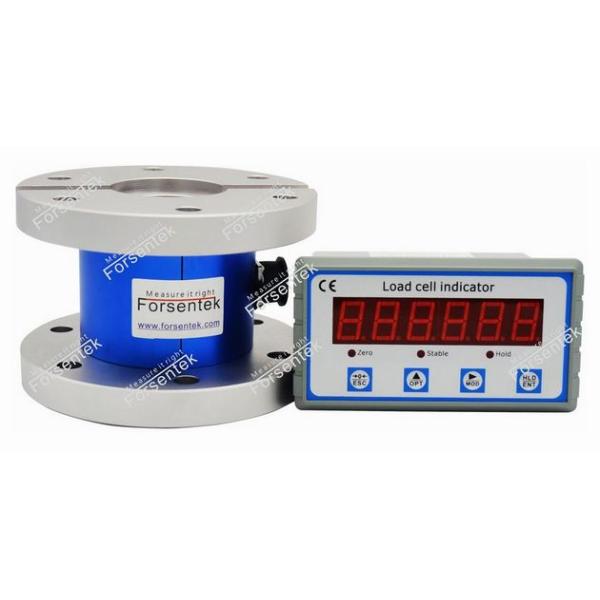

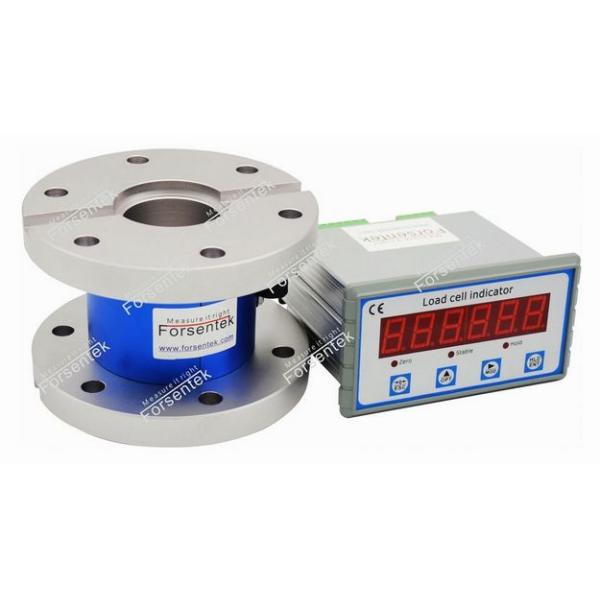

Torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque meter can be used to display the torque value.Digital indicator FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static and dynamic measurement.FPT also supports RS485/RS232 communication interface and 0-10V/0-5V/4-20mA amplified signal output which is proportional to the measured torque.

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

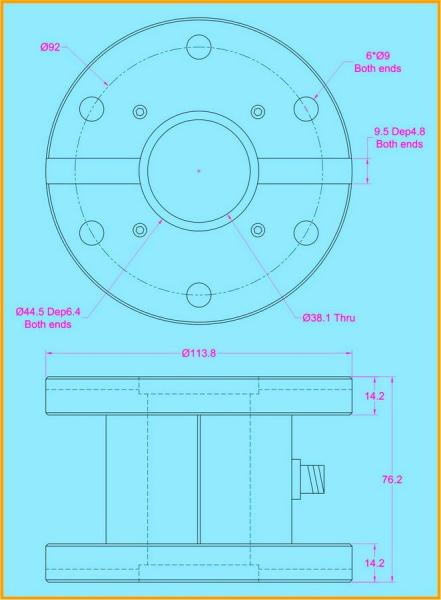

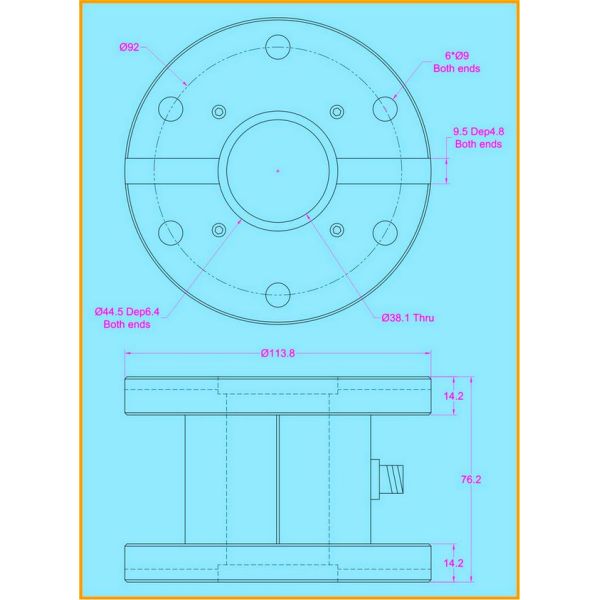

Dimensions

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm
