500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
500g load cell 500 gram load cell 5N weight sensor
Specifications
Brand Name :
Forsentek
Model Number :
FNB
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
10000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Weighing measurement sensor
Theory :
Strain gauge load cell
Output :
Analog Sensor
Capacity :
300g 500g 1kg 2kg 3kg
Description

500g load cell 500 gram load cell 5N weight sensor

500g load cell 500 gram load cell 5N weight sensor

Features

  • Aluminum construction,strain gauge technology
  • Temperature compensated,high accuracy
  • Single point structure,easy to install
  • Suitable for platform sizes up to 150*150(mm)
  • Widely used for price computing scales,counting scales,bench scales and other high accuracy weighing applications

500g load cell 500 gram load cell 5N weight sensor

Specifications

Capacity 300g 600g 1kg 2kg 3kg
Rated output 1.3±10%mV/V
Excitation 3-15V
Zero balance ±5% R.O.
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*250mm(Longer cable available)
Wiring code Red--E+ Black--E- Green--S+ White--S-

High accuracy Load cell 300g 500g 1kg 2kg 3kg

500g load cell 500 gram load cell 5N weight sensor

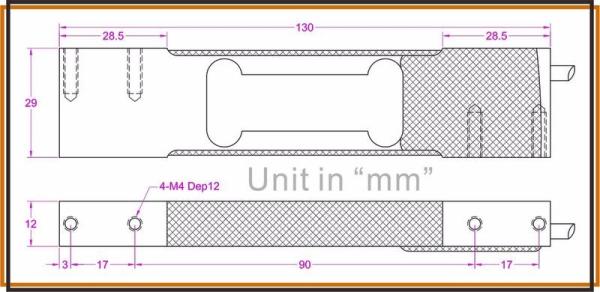

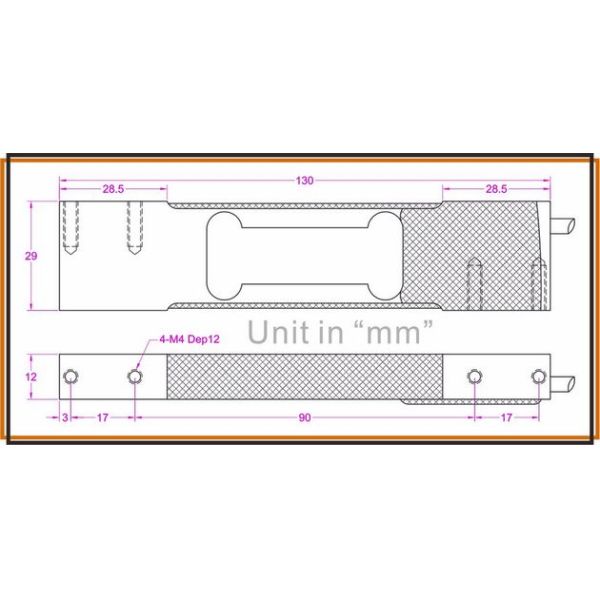

Dimensions

500g load cell 500 gram load cell 5N weight sensor

Ordering code:

FNB-0.3kg FNB-0.5kg FNB-1kg FNB-2kg FNB-3kg
