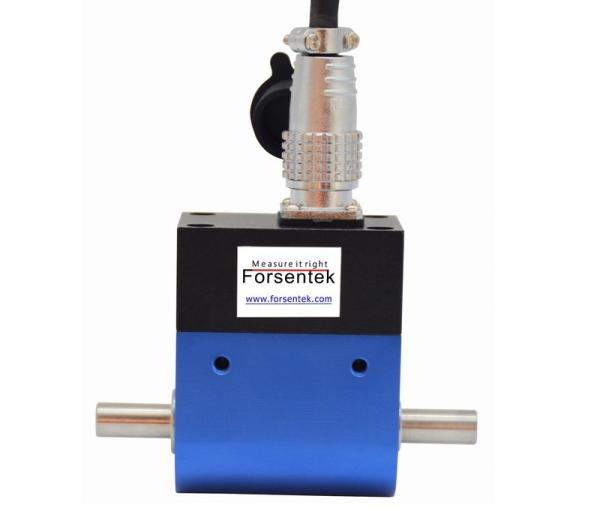

0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM
0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM
0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM
0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM
Specifications
Brand Name :
Forsentek
Model Number :
FYF
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2100pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Certification :
CE
Usage :
Rotating torque measurement
Theory :
Dynamic torque sensor
Output :
Analog Transducer
Torque direction :
Clockwise&Counterclockwise
Capacity :
0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM
Configuration :
Shaft-to-shaft
Description

0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM

  • Stainless steel measure element,aluminum housing
  • Compact size,shaft to shaft structure,easy to install
  • Strain gauge technology,analog output
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotational torque measurement

Specifications

Rated capacity

0.1NM / 0.88 lbf*in

0.2NM / 1.77 lb-in

0.5NM / 4.4 lbf-in

1NM / 8.8 lb*in

2NM / 17.7 lbf-in

3NM / 26.5 lbf-in

5NM / 44 lbf*in
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP40
Material of element Stainless steel
Cable Ø5*3000mm with mating connector
Wiring code Red--Excxcitation+ Black--Excitation-
Green--Signal+ White--Signal-


Rotational torque sensor for rotating torque measurement
0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM
Dimensions

0.1NM Rotational torque sensor 0.2NM Rotational torque measurement 0.5NM

Click here to download datasheet
