Specifications
Brand Name :
Forsentek
Model Number :
FY01
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Usage :
Torque test/torque measure
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Torque measurement direction :
Clockwise&Counterclockwise
Description

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

  • CE certified
  • Stainless steel measure element,aluminum housing
  • Shaft to shaft structure,easy to install
  • Strain gauge technology,analog output
  • Both clockwise and counterclockwise measurement
  • Typical applications are motor torque measurement,pump torque measurement,engine testing,test benches,etc..

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

Specifications

Capacity

10NM 20NM 30NM 50NM

100NM 200NM 300NM 500NM
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Non-linearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Non-repeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5.5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

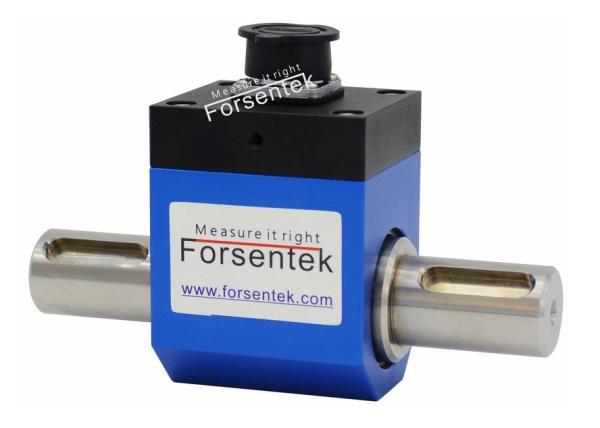

Rotating torque measurement transducer FY01

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

Dimensions

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer
