2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
Specifications
Brand Name :
Forsentek
Model Number :
FY01
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Usage :
DC Motor torque measurement
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Torque measurement direction :
Clockwise&Counterclockwise
Description

2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor

  • CE certified
  • Stainless steel measure element,aluminum housing
  • Shaft to shaft structure,easy to install
  • Strain gauge technology,analog output
  • Both clockwise and counterclockwise measurement
  • Typical applications are motor torque measurement,pump torque measurement,engine testing,test benches,etc..

2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor

Specifications

Capacity

10NM 20NM 30NM 50NM

100NM 200NM 300NM 500NM
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Non-linearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Non-repeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5.5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor

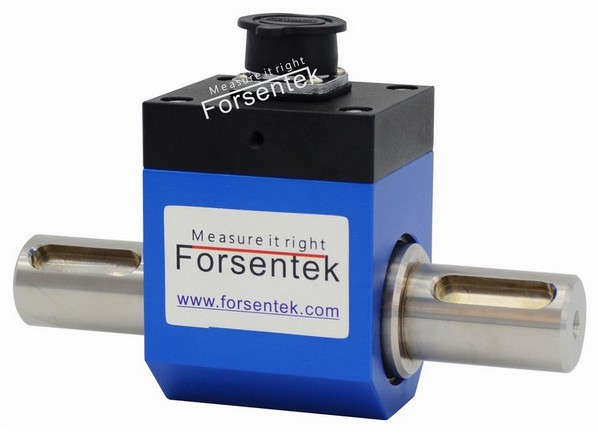

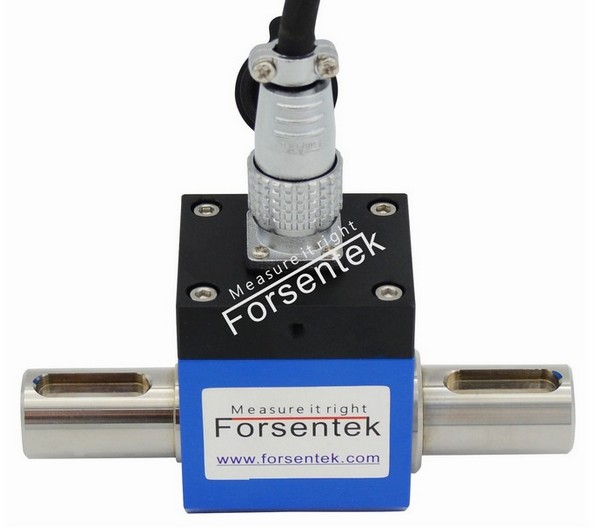

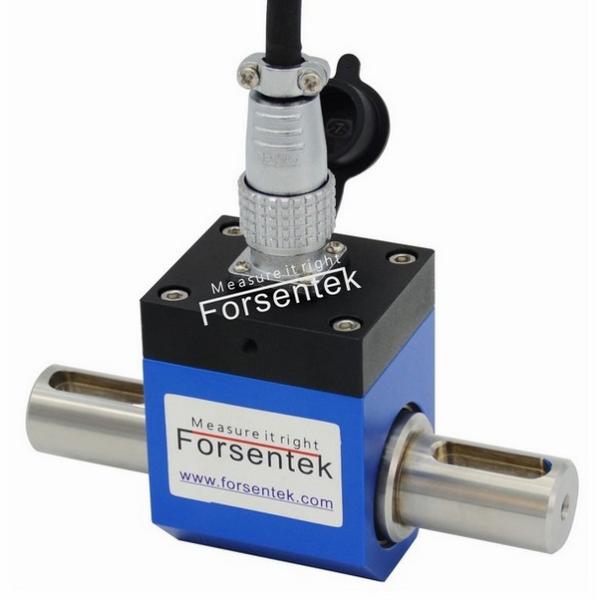

Motor rotating torque measurement transducer FY01

2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor

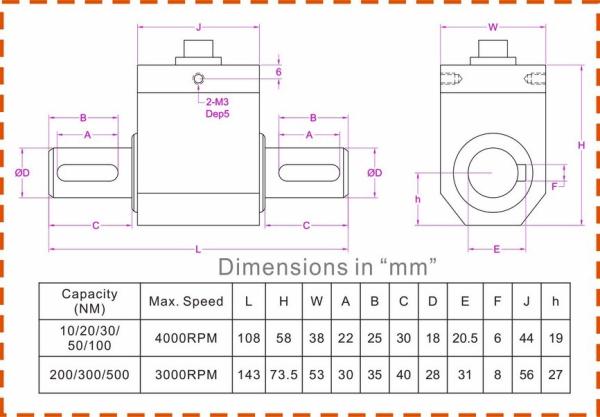

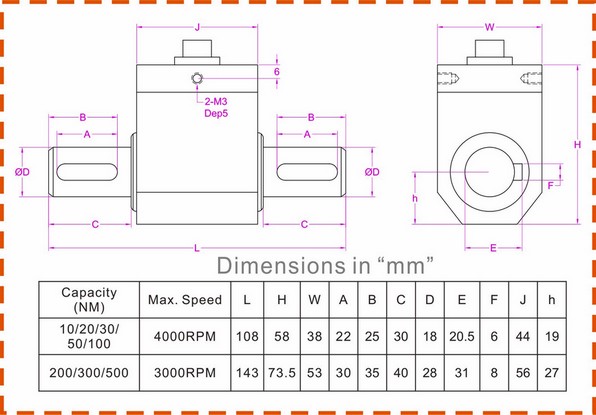

Dimensions

2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor

2000 lbf*in DC motor torque measurement 3000 lb-in rotary torque sensor
