Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Miniature load cell 300N 200N 100N 50N small size weight sensor
Specifications
Brand Name :
Forsentek
Model Number :
FMZU
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
50000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Weight measurement
Theory :
Strain gauge load cell sensor
Output :
Analog Sensor
Capacity :
0-300N(0-30kg)
Description

Miniature load cell 300N 200N 100N 50N small size weight sensor

Miniature load cell 300N 200N 100N 50N small size weight sensor


Features

  • Aluminum construction,miniature size,light weight
  • 1000 ohms resistance,low heat emission compared to 350 ohms version
  • Suitable for arduino based applications
  • Low cost load sensor
  • Customizable

Miniature load cell 300N 200N 100N 50N small size weight sensor

Specifications

Rated capacity

5kg 10kg 15kg 20kg 30kg

(50N 100N 150N 200N 300N)
Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.2mV/V
Nonlinearity ±0.1% of R.O.
Hysteresis ±0.1% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(5min) ±0.1% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 1000±50 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable 32AWG*85mm(Longer cable available)
Wiring code Red--Exc+ Black--Exc-
Green--Sig+ White--Sig-

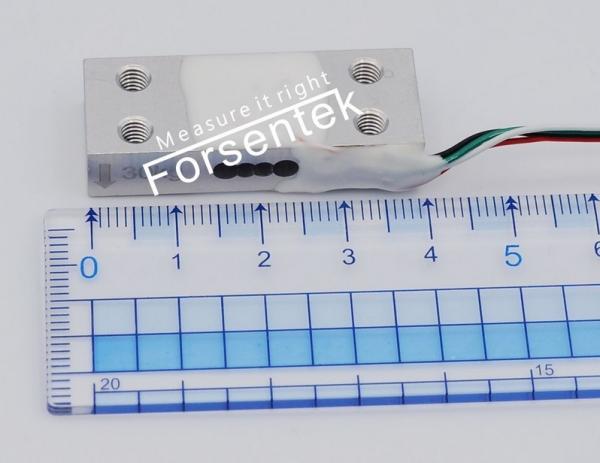

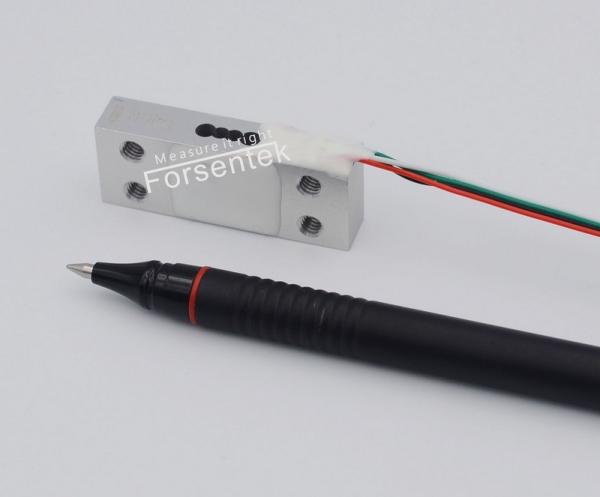

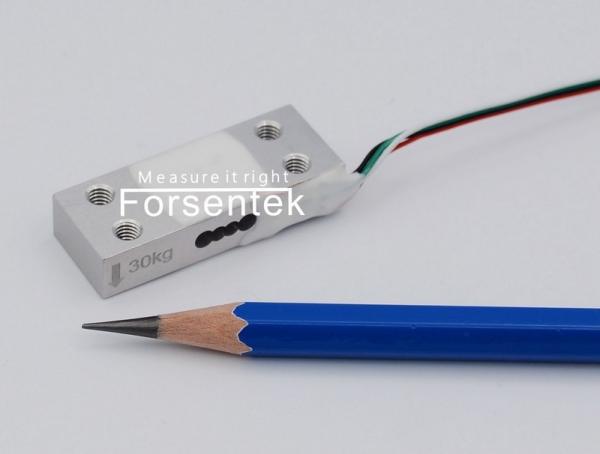

0-30kgf Miniature load cell sensor FMZU

Miniature load cell 300N 200N 100N 50N small size weight sensor

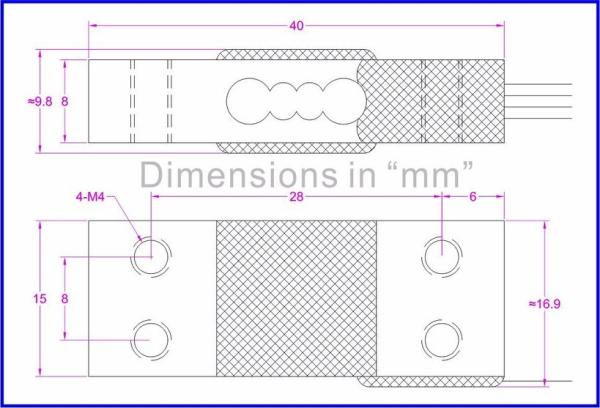

Dimensions(unit in milimeter)

Miniature load cell 300N 200N 100N 50N small size weight sensor

Ordering code:

FMZU-5kg FMZU-10kg FMZU-15kg FMZU-20kg FMZU-30kg

Miniature load cell 300N 200N 100N 50N small size weight sensor
