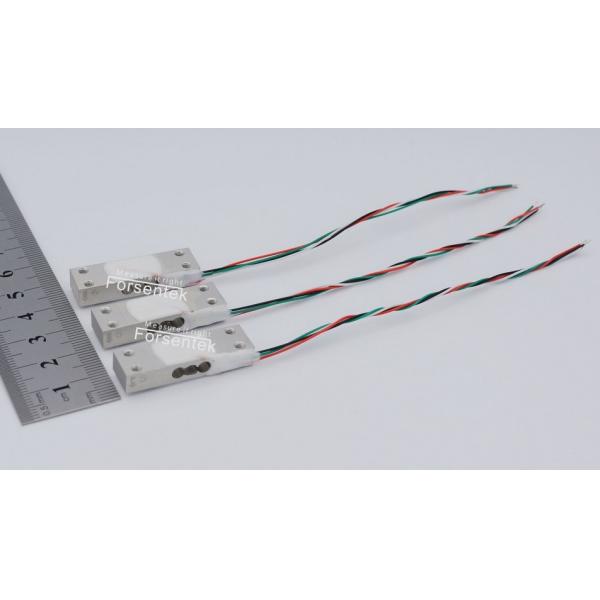

Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Specifications
Brand Name :
Forsentek
Model Number :
FMZK
Place of Origin :
China
MOQ :
3pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
65000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Price :
39usd/pc
Usage :
Weight measurement
Type :
Low cost miniature load cell
Output :
Analog Sensor
Capacity :
0.5kg 1kg 2kg 3kg 5kg 10kg
Description

Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor


Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor
Features

  • Miniature size,light weight
  • 1000 ohms resistance,low heat emission
  • Suitable for arduino based applications
  • Low cost load cell sensor with high accuracy
  • Customizable

Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor

Specifications

Rated capacity

0.5kg / 5N / 1 lb

1kg / 10N / 2 lb

2kg / 20N / 4.4lb

3kg / 30N / 6.6 lb

5kg / 50N / 11 lb

6kg / 60N / 13 lb

10kg / 100N / 22 lb
Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.1mV/V
Nonlinearity ±0.05% of R.O.
Hysteresis ±0.05% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(3min) ±0.05% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable 32AWG*85mm(Longer cable available)
Wiring code Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-


Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor

Low cost load cell sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.

Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor

Dimensions(unit in milimeter)

Miniature Low cost load cell 100N 50N 30N 20N 10N Cheap weight sensor

Ordering code:

FMZK-0.5kg FMZK-1kg FMZK-2kg FMZK-3kg

FMZK-5kg FMZK-6kg FMZK-10kg

Click here to download datasheet

Product tags

miniature load cell sensor

,

micro load cell sensor

,

weighing sensor load cell
