Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Specifications
Brand Name :
Forsentek
Model Number :
F3A/F3B
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1690pcs/month
Delivery Time :
3-25 business days
Packaging Details :
1pc/box
Certification :
CE
Usage :
Multi-axis force measurement
Force range :
1000kg 500kg 300kg 200kg 100kg 50kg
Type :
3 axis load cell
Connection :
Flange to flange
Output :
Analog Sensor
Description

Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor

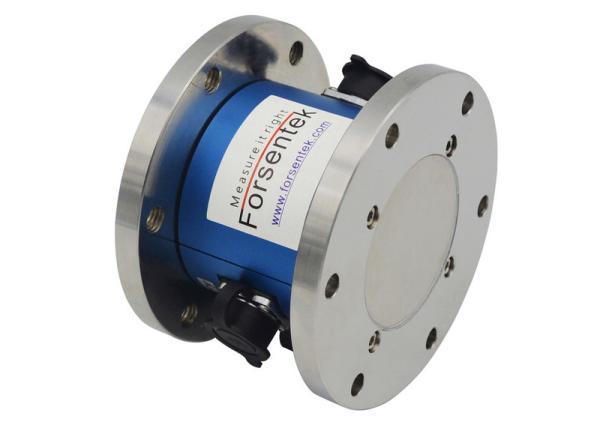

Multi axis load cell F3A is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.Flange to flange mounting,easy to install.Typical applications for this type of transducer are for example force exertion control in robotics,automotive crash testing,industrial test benches,grinding force control,actuator operating force measurement and so on.

Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Specifications

Rated Capacity

50kg / 500N / 110lb

100kg / 1kN / 220lbf

200kg / 2kN / 440lb

300kg / 3kN / 660 lbf

500kg / 5kN / 1100lbf

1000kg / 10kN / 2200 lb

Sensitivity1.0mV/V
Excitation3-15V
Zero balance±0.05mV/V
Non-linearity±0.5% R.O.
Hysteresis±0.3% R.O.
Non-repeatability±0.2% R.O.
Creep(10min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature0...+40oC
Operating temperature-10...+60oC
Temperature shift on zero±0.02% R.O./oC
Temperature shift on span±0.02% R.O./oC
Input resistance

Fx/Fy: 380±30 ohms
Fz: 710±30 ohms

Output resistance

Fx/Fy: 355±5 ohms

Fz: 710±10 ohms

Insulation resistance>2000M ohms
Ingress protectionIP62
Material of element

<100kg Aluminum alloy
>50kg Stainless steel

Cable

F3A: Ø6*3000mm 8-pin shielded cable (x1)
F3B: Ø5*3000mm 4-pin shielded cable (x3)

Wiring code

4-wire connection for each axis


3-axis load cell 1000kg 500kg 300kg 200kg 100kg 50kg Multi-axis force sensor
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor
Dimensions(Unit in "mm)
Triaxial load cell 1000kg multi aixs force sensor 10kN 3-axis force sensor

Click here to download datasheet
