Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Specifications
Brand Name :
Forsentek
Model Number :
F3G
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2100pcs/month
Delivery Time :
3-25 business days
Packaging Details :
1pc/box
Certification :
CE
Usage :
Multi-axis force measurement
Type :
Triaxial Load Cell
Load Direction :
Fx Fy Fz
Force range :
1kN 500N 300N 200N 100N 50N 20N
Output :
Analog Sensor
Description

Triaxial force sensor 500N triaxial load cell 50kg tri-axis force sensor

Triaxial force sensor F3G is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this type of transducer are for example force exertion control in robotics,industrial test benches, grinding force control, actuator operating force measurement and so on.

Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb

Specifications

Rated Capacity

20N / 2kgf / 4.5lbf

30N / 3kgf / 6.7lb

50N / 5kgf / 11 lb

100N / 10kgf / 22lb

200N / 20kgf / 45 lb

300N / 30kgf / 67 lb

500N / 50kgf / 112lb

1000N / 100kgf / 225lb
Sensitivity 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Non-repeatability ±0.1% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.03% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element

<100N Aluminum alloy

>50N Stainless steel
Cable

Ø6*3000mm 12-pin shielded cable
Wiring code

4-wire connection for each axis

Triaxial force sensor 500N triaxial load cell 50kg tri-axis force sensor

Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb

Ordering code of multi axis load cell force sensor F3G

Ordering

code

 Capacity Material
Fx=Fy Fz
F3G-20N 20N 20N

Aluminum alloy
F3G-20-20-30 30N
F3G-30N 30N 30N
F3G-30-30-50 50N
F3G-50N 50N 50N
F3G-50-50-100 100N
F3G-100N 100N 100N

Stainless steel
F3G-100-100-200 200N
F3G-200N 200N 200N
F3G-200-200-300 300N
F3G-300N 300N 300N
F3G-300-300-500 500N
F3G-500N 500N 500N
F3G-500-500-1k 1kN
F3G-1kN 1kN 1kN

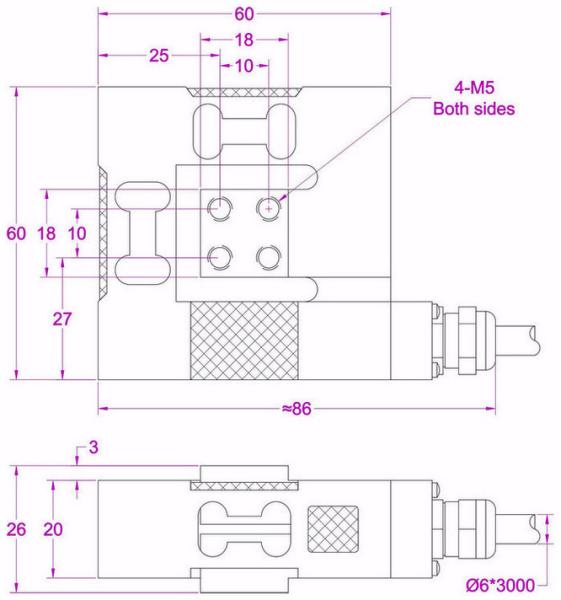

Dimensions(Unit in "mm)

Triaxial Force Sensor 500N Triaxial Load Cell 50kg Tri-axis Force Transducer 100lb
Click here to download datasheet
