High capacity torque sensor from 200NM to 100kNM reaction torque transducer
High capacity torque sensor from 200NM to 100kNM reaction torque transducer
High capacity torque sensor from 200NM to 100kNM reaction torque transducer
High capacity torque sensor from 200NM to 100kNM reaction torque transducer
Specifications
Brand Name :
Forsentek
Model Number :
FT03
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2660pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Certification :
CE
Usage :
Torque measurement unit
Theory :
Reaction torque sensor
Output :
Analog Sensor
Capacity :
200NM~100kNM
Mounting :
Flange-to-flange
Description

High capacity torque sensor from 200NM to 100kNM torque transducers

High capacity torque sensor FT03 is made of high stiffness alloy steel based on strain gauge technology,torque transducer FT03 delivers mV/V signal from wheatstone bridge bonded on a specially machined body.Flange to flange design makes it easy to mount FT03 to existing strutures.Torque load cell FT03 is available in a very wide measuring range from 200NM up to 100kNm,you may find FT03 suitable for applications such as motor torque measurement,test bench applications,screw driver calibration,fatigue testing,twist measurement,motor dynamometers,actuator test as so on.
High capacity torque sensor from 200NM to 100kNM reaction torque transducer

Specifications

Capacity

200NM 300NM 500NM 1000NM 2000NM 3000NM

5000NM 10kNM 20kNM 30kNM 40kNM

50kNM 60kNM 70kNM 80kNM 100kNM
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity

200NM~10kNM: ±0.25% R.O.

20k~10kNM: ±0.5% R.O.
Hysteresis

200NM~10kNM: ±0.25% R.O.

20k~10kNM: ±0.5% R.O.
Nonrepeatability

200NM~10kNM: ±0.1% R.O.

20k~10kNM: ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 700±100 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Alloy steel
Cable

Ø5*3000mm 4-core shielded cable

with mating connector
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

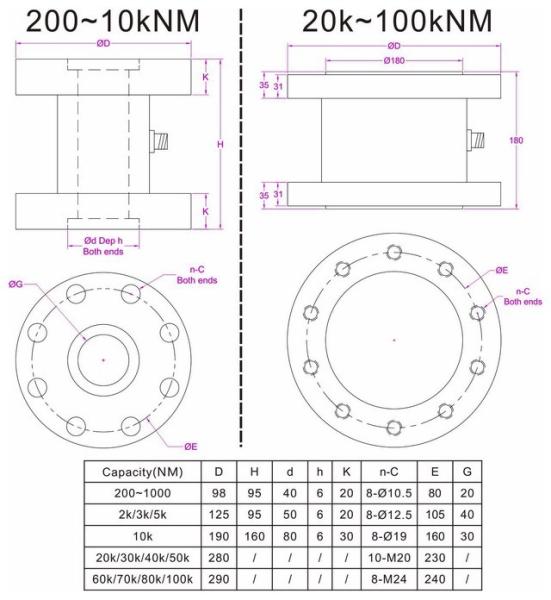

Dimensions(unit in milimeter)

High capacity torque sensor from 200NM to 100kNM reaction torque transducer

Click here to download datasheet
