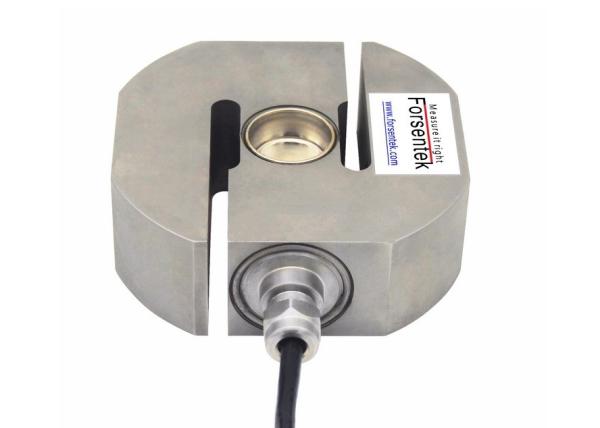

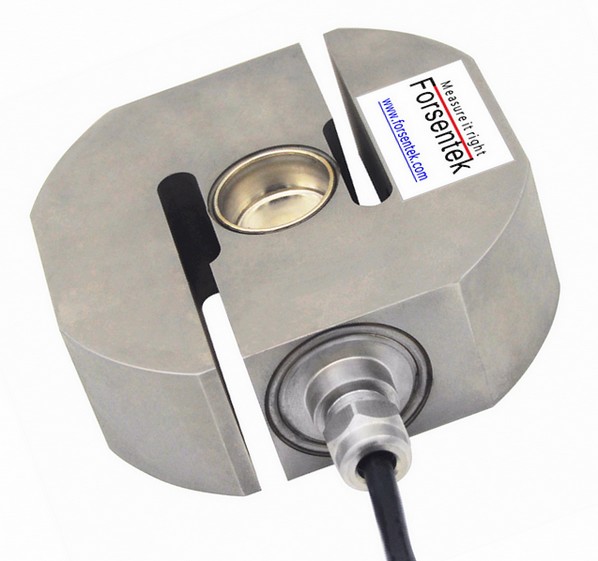

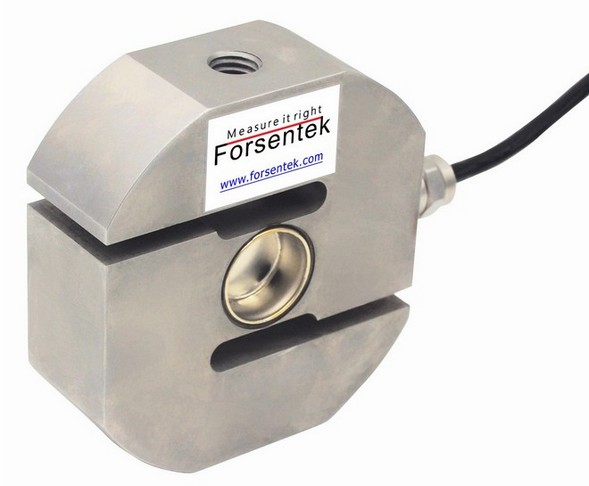

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
Specifications
Brand Name :
Forsentek
Model Number :
FSRT
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
4~25 working days
Packaging Details :
Carton
Usage :
Compression tension force measurement
Theory :
Strain gauge load cell
Output :
Analog Sensor
Capacity :
5kN 10kN 20kN 30kN 40kN 50kN 60kN 75kN
Material :
Stainless steel
Type :
S-type load cell
Description

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell 7500kg

  • Stainless steel construction
  • IP68 hermetically sealed for harsh environment like outdoor applications
  • Strain gauge based,high accuracy
  • Compression and tension force measurement
  • Widely used for force gauges,hanging scales,suspended tank weighing, hopper scales,cement scales,batch scales,belt scales,material testing machines,etc..

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68

Specifications

Capacity

500kg / 5kN

1000kg / 10kN

2000kg / 20kN

3000kg / 30kN

4000kg / 40kN

5000kg / 50kN

6000kg / 60kN

7500kg / 75kN
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.03mV/V
Nonlinearity ±0.017% R.O.
Hysteresis ±0.017% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.017% R.O.
Safe overload 150% F.S.
Ultimate overload 300% F.S.
Compensated temperature -10...+40oC
Operating temperature -35...+65oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 350±5 ohms
Output resistance 350±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable

500kg---Ø5*3000mm

1000kg~7500kg---Ø5*6000mm

4-core shielded cable
Wiring code

Red--Exc+ Black--Exc-
Green---Sig+ White--Sig-

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell 7500kg

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68

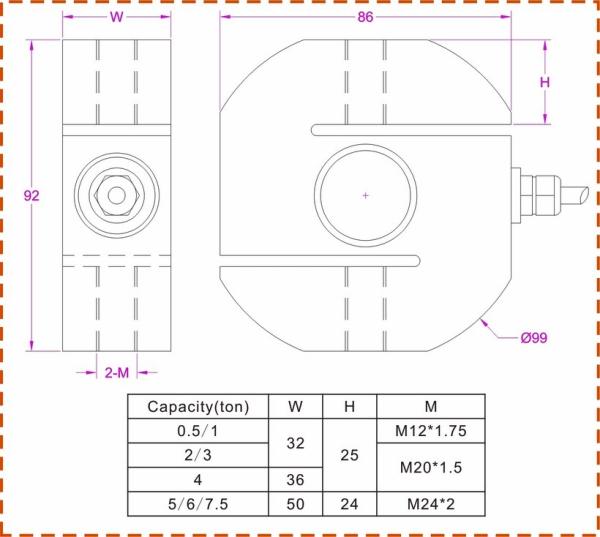

Dimensions(Unit in "mm")

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68

4000kg S-beam load cell 5000kg S-type load cell 6000kg S shaped load cell IP68
