Specifications
Brand Name :
Forsentek
Model Number :
FTE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Torque measurement sensor
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Torque range :
1kgf*cm 2kgf*cm 5kgf*cm 10kgf*cm 20kgf*cm 30kgf*cm 50kgf*cm 100kgf*cm 200kgf*cm
Description

Torque sensor 1 kgf*cm 2kgf-cm 5 kgf-cm 10 kgf*cm 20 kgf-cm 50 kgf*cm 100 kgf*cm 200 kgf-cm

1 kgf-cm Torque sensor 2 kgf*cm torque transducer 5 kgf-cm torsion measurement
Features

  • Compact size
  • Flange to flange structure,easy to insall
  • Analog output,high accuracy
  • Reaction torque measurement in both clockwise and counterclockwise direction

1 kgf-cm Torque sensor 2 kgf*cm torque transducer 5 kgf-cm torsion measurement
Specifications

Capacity

1 kgf-cm 2 kgf*cm 5kgf-cm 10kgf-cm 20kgf-cm

30 kgf*cm 50kgf-cm 100 kgf*cm 200kgf-cm
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Non-linearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Non-repeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 700 ohms
Output resistance 700 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element

0-5NM Aluminum alloy
10-20NM Stainless steel
Cable Ø3*3000mm 4-core shielded cable
Wiring code

Clockwise
Red--E+ Black--E- Green--S+ White--S-


Small torque sensor FTE with flange mounting
1 kgf-cm Torque sensor 2 kgf*cm torque transducer 5 kgf-cm torsion measurement

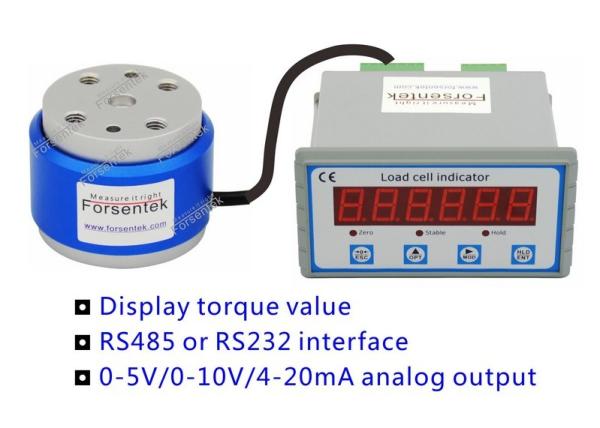

Torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque value can be displayed by working with torque meter.Digital indicator FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static and dynamic measurement.FPT also supports RS485/RS232 communication interface and 0-10V/0-5V/4-20mA signal output proportional to the measured torque which can be collected by PLCs.
1 kgf-cm Torque sensor 2 kgf*cm torque transducer 5 kgf-cm torsion measurement

Dimensions(unit in "mm")

1 kgf-cm Torque sensor 2 kgf*cm torque transducer 5 kgf-cm torsion measurement

1 kgf-cm Torque sensor 2 kgf*cm torque transducer 5 kgf-cm torsion measurement
