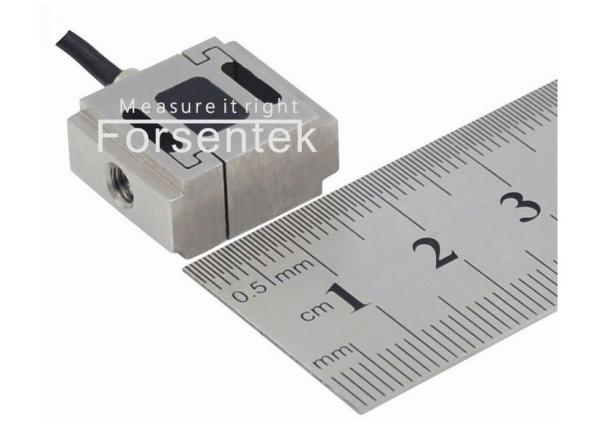

200 lb micro load cell sensor miniature s beam force transducer 200lbs
200 lb micro load cell sensor miniature s beam force transducer 200lbs
200 lb micro load cell sensor miniature s beam force transducer 200lbs
200 lb micro load cell sensor miniature s beam force transducer 200lbs
200 lb micro load cell sensor miniature s beam force transducer 200lbs
200 lb micro load cell sensor miniature s beam force transducer 200lbs
Specifications
Brand Name :
Forsentek
Model Number :
FSSM-1kN
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2610pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Force measurement
Type :
Miniature tension compression load cell
Output :
Analog Sensor
Capacity :
200lbs(100kg)
Force measuring direction :
Tension and compression
Connection :
M4 threaded hole
Description

200 lb load cell sensor miniature s beam load cell 200lbs

200 lb micro load cell sensor miniature s beam force transducer 200lbs

Features

  • Miniature s beam load cell made of stainless steel
  • M4 threaded holes for easy connection
  • Strain gauge technology,high accuracy
  • Tension compression force measurement

200 lb micro load cell sensor miniature s beam force transducer 200lbs

Specifications

Capacity 1kN(200 lbs)
Rated output 2.0 mV/V
Excitation 3-10V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% of R.O.
Hysteresis ±0.1% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(5min) ±0.1% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 380±30 ohms
Output resistance 355±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm
Wiring code

Compression@

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Miniature load cell force sensor for tension compression force measurementLFS 27

0

200 lb micro load cell sensor miniature s beam force transducer 200lbs

Dimensions(Unit in "mm")

200 lb micro load cell sensor miniature s beam force transducer 200lbs

Ordering Code: FSSM-1kN
