Specifications
Brand Name :
Forsentek
Model Number :
FMZU
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
50000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Weight measurement
Theory :
Strain gauge load sensor
Output :
Analog Sensor
Capacity :
0-300N(0-30kg)
Description

Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor

Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor


Features

  • Aluminum construction,miniature size,light weight
  • 1000 ohms resistance,low heat emission compared to 350 ohms version
  • Suitable for arduino based applications
  • Competitive price
  • Customizable

Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor

Specifications

Rated capacity

5kg / 50N / 11 lb

10kg / 100N / 22 lb

1​5kg / 150N / 33 lb

20kg / 200N / 44 lb

​30kg / 300N / 66 lb
Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.2mV/V
Nonlinearity ±0.1% of R.O.
Hysteresis ±0.1% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(5min) ±0.1% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 1000±50 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable 32AWG*170mm
Wiring code Red--Exc+ Black--Exc-
Green--Sig+ White--Sig-


Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor

Cheap small load cell weight transducer FMZU

Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor

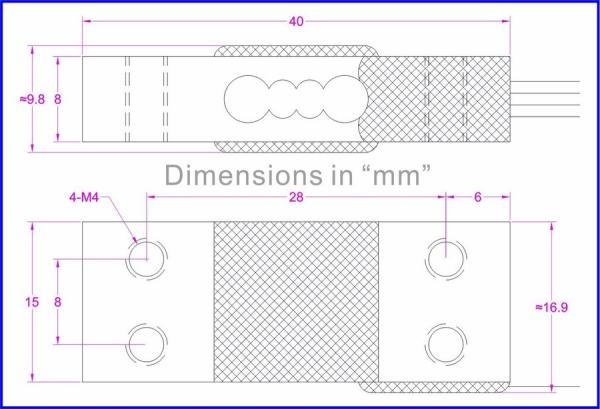

Dimensions(unit in milimeter)

Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor

Ordering code:

FMZU-5kg FMZU-10kg FMZU-15kg FMZU-20kg FMZU-30kg

Click here to download datasheet
