Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Specifications
Brand Name :
Forsentek
Model Number :
FNN
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
6000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Weight Measurement Transducer
Theory :
Weighing Sensor
Capacity :
60kg 100kg 200kg 350kg 500kg
Output :
Analog Load Cell
Description

Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale

Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Features

  • Aluminum construction,parallel beam structure
  • Strain gauge technology,high accuracy
  • Corner trimmed for 400*500(mm) platform
  • Widely used for platform scales,beehive scales,bench scales.etc.

Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale

Specifications

Capacity

60kg / 600N / 132 lbf
100kg / 1kN / 220lb
200kg / 2kN / 440 lbf
350kg / 3.5kN / 770lb

500kg / 5kN / 1.1k lbf
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø5*1500mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

High accuracy load cell for beeive scales
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale

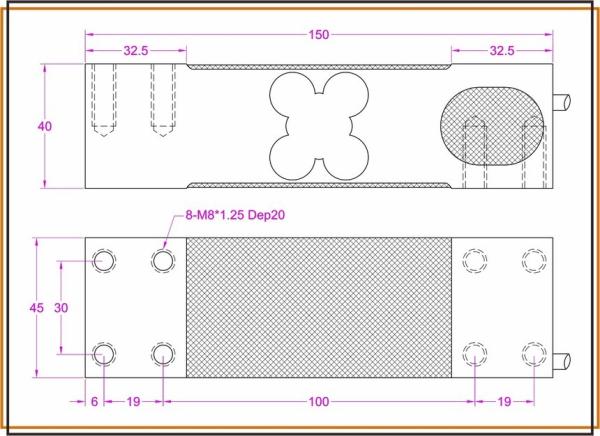

Dimensions(Unit in milimeter)
Weighing Sensor 100kg 200kg 350kg 500kg Load Cell For Beehive Scale
Ordering code: FNN-60kg FNN-100kg FNN-200kg FNN-350kg FNN-500kg

Click here to download datasheet
