Description

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3t 5t

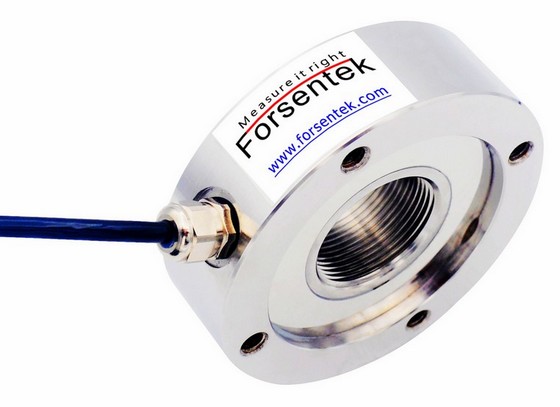

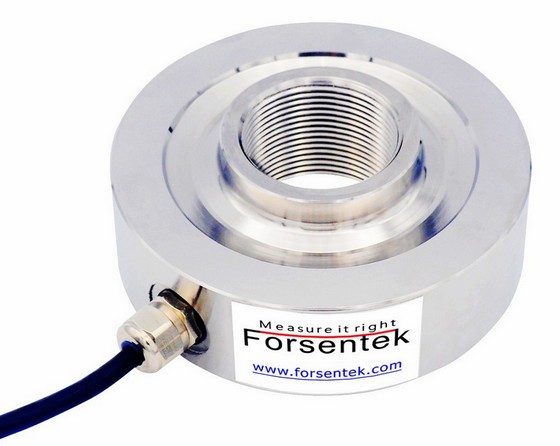

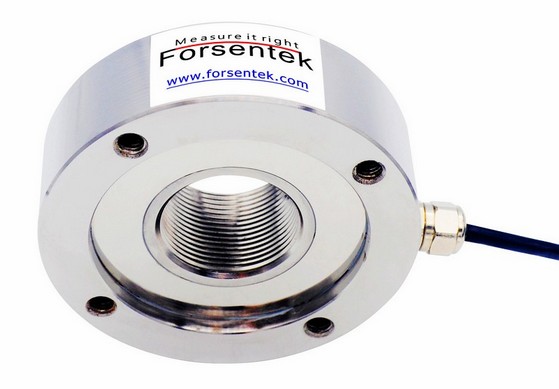

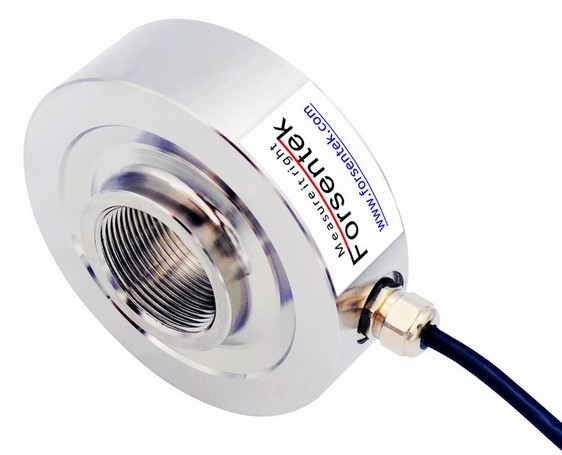

Hollow Through Hole Load Cell FDBH is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity intended for both traction and compression force measurement. Donut Load Cell FDBH offers 0-500kgf / 0-1000kgf / 0-2000kgf / 0-3000kgf / 0-5000kgf five rated measuring ranges to choose from. Hollow type load cell FDBH features a M30 threaded hole located at the center of the transducer, which offers following two mounting methods:

  • Load structure passes through the sensor to measure compression force
  • Load structure connects with the M30 threaded hole to measure compression/tension force

Washer type force sensor FDBH is very suitable for clamping/fastening force measurement, to meet requirements of different applications, model FDBH can also be modified or customized.

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3 ton 5t

Dimensions

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3 ton 5t

Ordering code Measurement Range Force direction
FDBH-5kN 0-500kgf / 0-1100lbf

Tension

and

Compression
FDBH-10kN 0-1000kgf / 0-2200lbf
FDBH-20kN 0-2000kgf / 0-4500lbf
FDBH-30kN 0-3000kgf / 0-6700lbs
FDBH-50kN 0-5000kgf / 0-11200lbf

Specifications

Capacity

5kN / 10kN / 20kN / 30kN / 50kN

1.1klb / 2.2klb / 4.5klb / 6.7klbs / 11.2klbf

500kg / 1ton / 2 ton / 3 ton / 5ton
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3 ton 5t

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3 ton 5t

Output signal of load cell FDBH:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Hollow Load Cell FDBH is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBH is normally within 3-15V.
Load / Capacity is within 0-1.

Load direction of pancake load cell FDBH is tension and compression.
So the output range of Force Transducer FDBH is normally within -22.5mV…+22.5mV.

Example one: Through Hole Load Cell FDBH-50kN with 1.5mV/V sensitivity powered by 10V DC,the output range is -15mV...+15mV.
Example two: Hollow Type Load Cell FDBH-10kN with 1.5mV/V rated output powered by 5V DC,the output range is -7.5mV...+7.5mV.

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3 ton 5t

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Washer Type Load Cell FDBH-10kN working with amplifier FSC(-10-10V)-24V,the Load-Voltage relationship will be 0-10kN compression force VS 0-10V output, 0-10kN traction load VS 0-(0-10V) output, which is linear regardless of the measurement error.

Thru-hole Loadcell FDBH can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3t 5t

Donut Load Cell 500kg 1000kg Thru-hole Tension Compression Sensor 2t 3 ton 5t


Click here to download datasheet
