Specifications
Brand Name :
Forsentek
Model Number :
FDBG
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3099pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Fastening Force Measurement
Structure :
Donut Through Hole
Output :
Analog Transducer
Capacity :
10/20/30/50/100/200KN
Description

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN

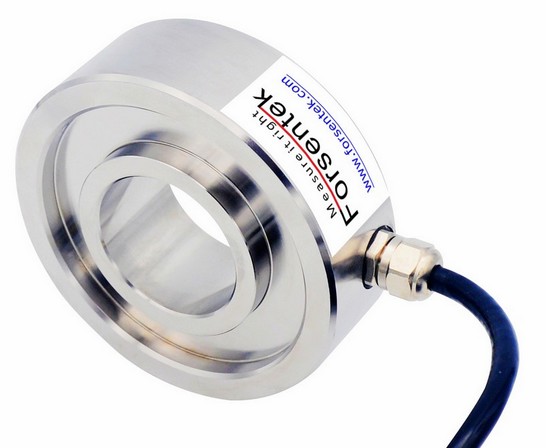

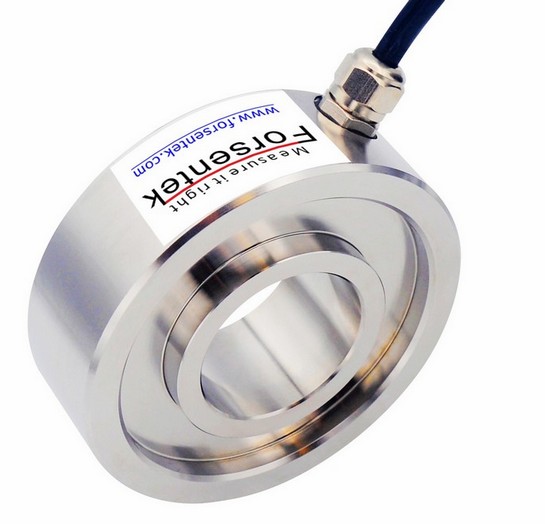

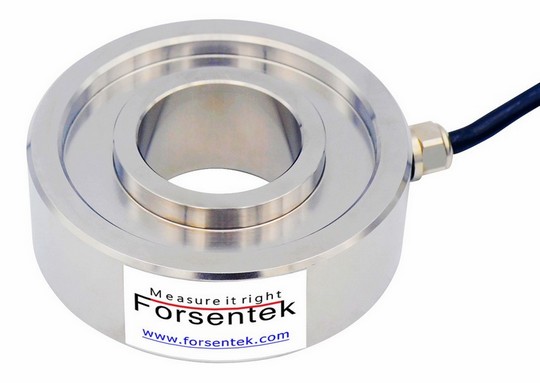

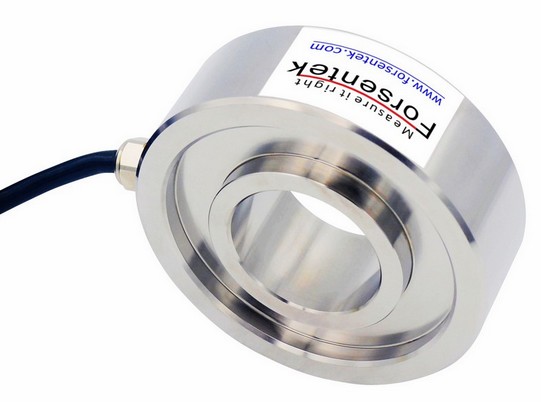

Hollow Through Hole Load Cell FDBG is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity intended for fastening force measurement. Washer Load Cell FDBG offers 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-100kN / 0-200kN six rated measuring ranges to choose from. Hollow type load cell FDBG features a customizable thru-hole ranging from 7mm to 32mm located at the center of the transducer, so the load structure can pass through the sensor, which makes hollow force transducer FDBF an excellent option for tightening force measurement. Clamping force load cell FDBG can also be modified or customized upon request.

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN

Dimensions

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN

Ordering code Measurement Range Force direction
FDBG-10kN 0-1000kgf / 0-2200lbf Compression
FDBG-20kN 0-2000kgf / 0-4500lbf
FDBG-30kN 0-3000kgf / 0-6700lbs
FDBG-50kN 0-5000kgf / 0-11200lbf
FDBG-100kN 0-10 ton / 0-22.5klb
FDBG-200kN 0-20 ton / 0-45klbf

Specifications

Capacity

10kN / 20kN / 30kN / 50kN / 100kN / 200kN

2.2klb / 4.5klb / 6.7klbs / 11.2klbf / 22klbf / 45klb

1ton / 2ton / 3ton / 5ton / 10ton / 20ton
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN

Output signal of load cell FDBG:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Hollow Load Cell FDBG is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBG is normally within 0…+22.5mV.

Example one: Through Hole Load Cell FDBG-50kN with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Hollow Type Load Cell FDBG-100kN with 1.5mV/V rated output powered by 5V DC,the output range is 0mV...+7.5mV.

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Washer Type Load Cell FDBG-100kN working with amplifier FSC(0-5V)-24V,the Load-Voltage relationship will be 0-100kN compression force VS 0-5V output, which is linear regardless of the measurement error, 1V output corresponds to 20kN compression load, 2V output corresponds to 40kN press force, and so on.

Thru-hole Loadcell FDBG can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Donut Force Sensor 200kN 100kN 50kN Fastening Force Measurement 20kN 10kN


Click here to download datasheet
