Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN
Specifications
Brand Name :
Forsentek
Model Number :
FDBF
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3180pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Force measurement
Structure :
Through Hole
Output :
Analog Sensor
Capacity :
5/10/20/50/100kgf
Description

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

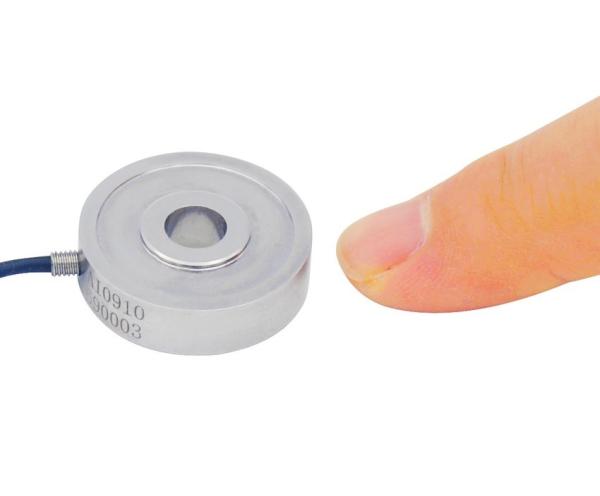

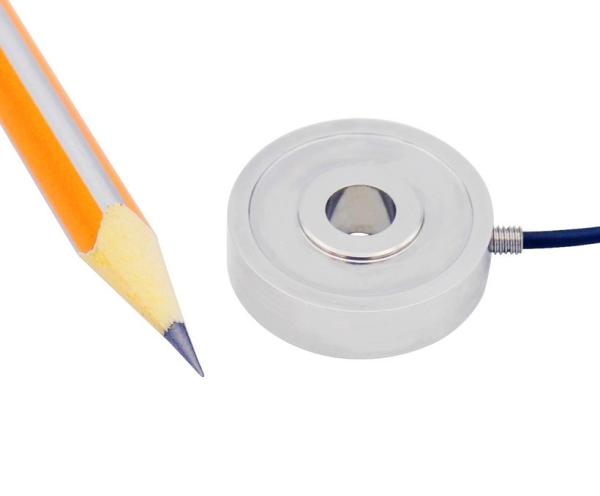

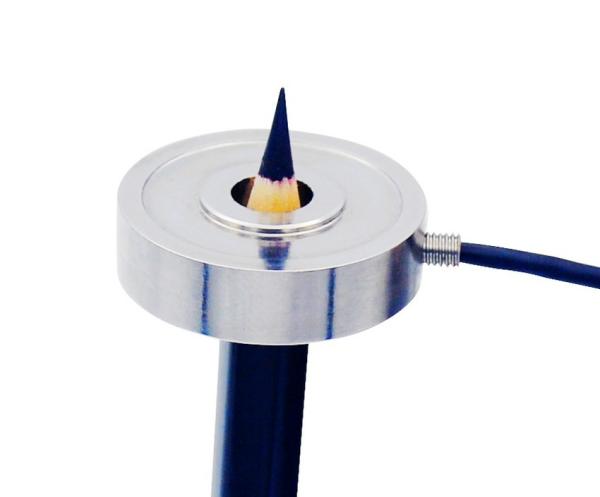

Miniature Donut Load Cell FDBF is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity. Small size donut load cell FDBF offers 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N five rated measuring ranges to choose from.Washer type load cell FDBF features a 6.6mm hole locates at the center of the transducer, so the load structure can pass through the sensor, which makes hollow force transducer FDBF an excellent option for tightening and clamping force measurement.Forsentek can also provide custom made service for the donut type load cells.

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

Specifications

Capacity

50N / 100N / 200N / 500N / 1kN

11lb / 22lb / 45lb / 112lb / 225lbf

5kg / 10kg / 20kg / 50kg / 100kg
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø1.9*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

Output signal of load cell FDBF:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Hollow Load Cell FDBF is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBF is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBF is normally within 0…+22.5mV.

Example one: Miniature Through Hole Load Cell FDBF-5kg with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Micro Hollow Type Load Cell FDBF-10kg with 1.5mV/V rated output powered by 5V DC,the output range is 0mV...+7.5mV.

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Micro Washer Load Cell FDBF-50kg working with amplifier FSC(0-5V)-24V,the Load-Voltage relationship will be 0-50kg compression force VS 0-5V output, which is linear regardless of the measurement error, 1V output corresponds to 10kg compression load, 2V output corresponds to 20kg press force, and so on.

Loadcell FDBF can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

Small Size Donut Load Cell 50N 100N Hollow Force Sensor 200N 500N 1kN

Ordering code Measurement Range Force direction
FDBF-5kg 0-5kgf / 0-50N Compression
FDBF-10kg 0-10kgf / 0-100N
FDBF-20kg 0-20kgf / 0-200N
FDBF-50kg 0-50kgf / 0-500N
FDBF-100kg 0-100kgf / 0-1KN

Click here to download datasheet
