Small Compression Sensor 50kg 500N Press Force Load Cell 100kg 1kN

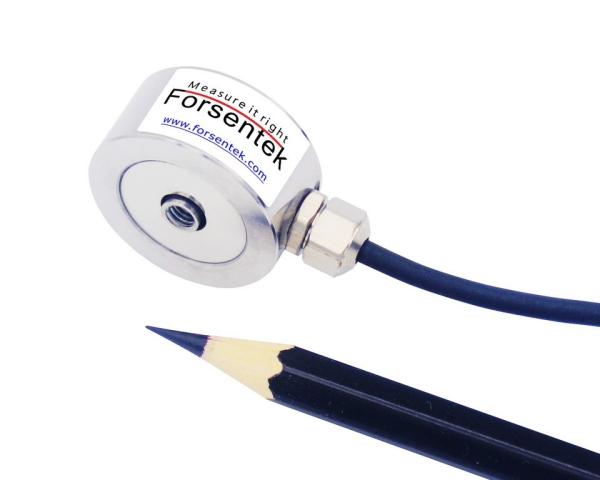

Small Size Compression Load Cell FCU is made from stainless steel based on strain gauge technology delivering unamplified mV output which is proportional to the load applied. Small Size Pancake Load Cell FCU offers 0-100N / 0-200N / 0-500N / 0-1000N four rated measuring ranges intended for both tension and compression force measurement. The miniature load cell FCU features a M4 tapped hole at the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Micro Load Cell FCU is applicable for both static and dynamic force measurement. Model FCU can also be modified or customzied as per requirements of our clients.

Dimensions

Specifications

Small Compression Sensor 500N 50kg Press Force Load Cell 1000N 100kgf

Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of miniature compression load cell FCU is normally around 1.5mV/V.
Power supply of small compression sensor FCU is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force sensor FCU is normaly within -18mV...+18mV for bidirectional force measurement.
Example: Miniature Load Cell FCU-1000N with 1.5mV/V power by 5V DC,the output range is -7.5mV...+7.5mV proportional to the applied force.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.

Example: Compression Force Load Cell FCU-200N working with 0-10V amplifier,the load-output relationship will be 0-200N compressive load VS 0-10V output, 0V output corresponds to 0N, 1V output corresponds to 20N compression load, 2V output corresponds to 40N load,and so on.

Small Compression Sensor 50kg 500N Press Force Load Cell 100kg 1kN

Click here to download datasheet
