M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

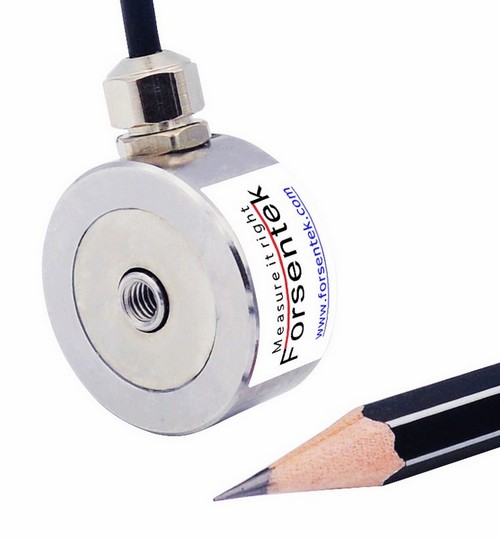

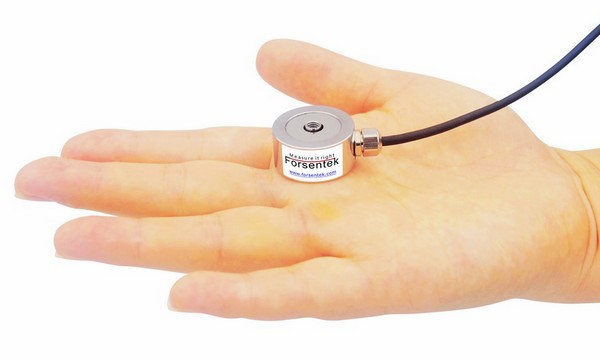

Miniature Compression Load Cell FCU is made from stainless steel based on strain gauge technology delivering unamplified mV output which is proportional to the load applied. Small Size Pancake Load Cell FCU offers 0-100N / 0-200N / 0-500N / 0-1000N four rated measuring ranges intended for both tension and compression force measurement. The miniature load cell FCU features a M4 tapped hole at the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Micro Load Cell FCU is applicable for both static and dynamic force measurement. Model FCU can also be modified or customzied as per requirements of our clients.

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

Dimensions

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg
Specifications

Capacity

100N / 10kg / 22.5lbf
200N / 20kg / 45lb
500N / 50kg / 110lb

100kg / 1kN / 220lb
Rated output 1.5mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3*4000mm 4-core shielded cable
Wiring code

Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-


M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg
M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of miniature compression load cell FCU is normally around 1.5mV/V.
Power supply of small compression sensor FCU is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force sensor FCU is normaly within -18mV...+18mV.
Example: Miniature Load Cell FCU-100N with 1.5mV/V power by 10V DC,the output range is -15mV...+15mV proportional to the applied force.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Force Load Cell FCU-500N working with 0-5V amplifier,the load-output relationship will be 0-500N compressive load VS 0-5V output,0V output corresponds to 0N, 1V output corresponds to 100N compression load, 2V output corresponds to 200N load,and so on.

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

Click here to download datasheet
