Stainless Steel Pancake Load Cell 50kg 100kg 200kg 500kg 1t 2t Compression Sensor

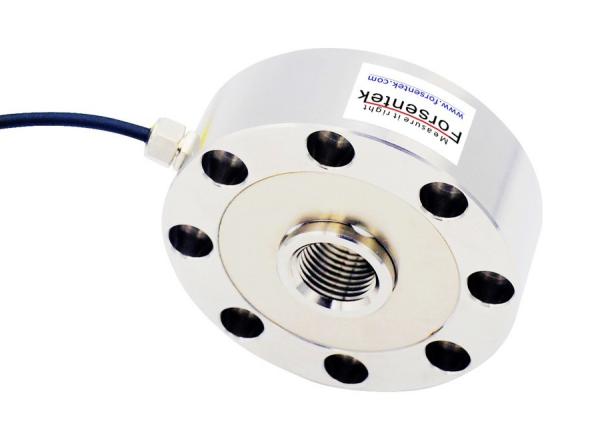

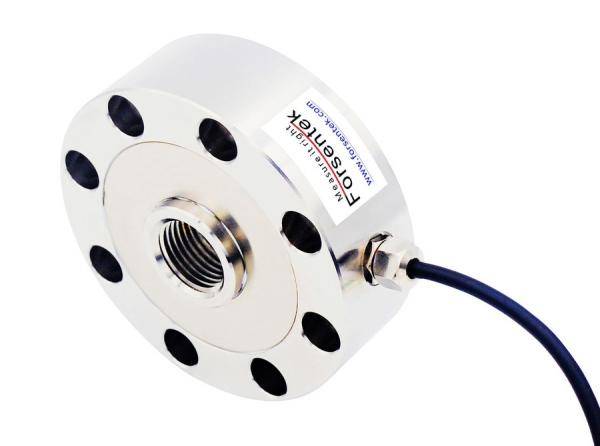

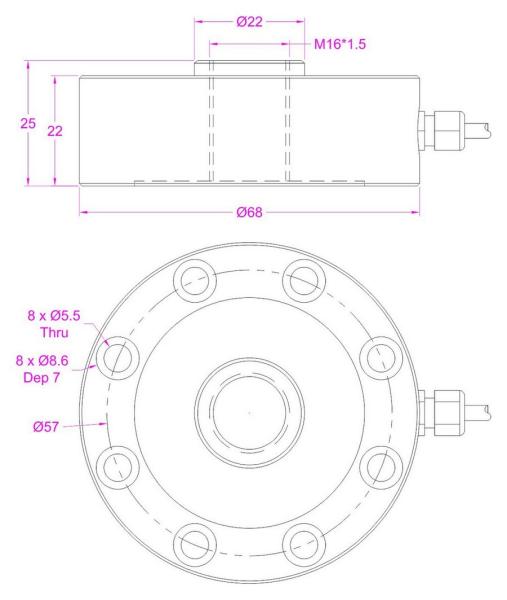

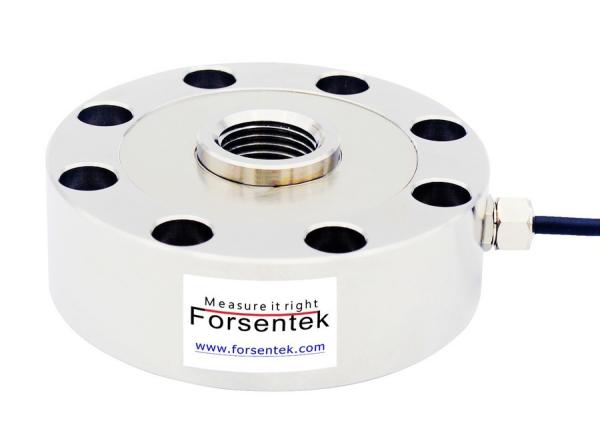

Stainless Steel Pancake Load Cell FCMU is produced based on strain gauge technology intended for both tension and compression force measurement. Pancake Load Cell FCMU offers 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg / 0-2000kg six rated measuring ranges. The low profile load cell FCMU incorporates an M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Stainless steel load cell FCMU is applicable for both static and dynamic force measurement. You may find pancake load cell FCMU suitable for force measurement in injection-molding machines, press machines and material testing equipment and so on. Model FCMU can also be modified or customzied as per requirements of our clients.

Specifications

Stainless Steel Pancake Load Cell 50kg 100kg 200kg 500kg 1t 2t Compression Sensor

Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of stainless steel pancake load cell FCMU is normally around 2.0mV/V.
Power supply of spoke type load cell FCMU is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of spoke type load cell FCMU is normaly within -30mV...+30mV.
Example: Pancake Load Cell FCMU-1000kg with 2.0mV/V power by 10V DC,the output range is -20mV...+205mV proportional to the applied load.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Load Cell FCMU-500kg working with 0-10V amplifier,the load-output relationship will be 0-500kg compressive load VS 0-10V output,0V output corresponds to 0kg, 1V output corresponds to 50kgf compression load, 5V output corresponds to 250kgf load, and so on.

Stainless Steel Pancake Load Cell 50kg 100kg 200kg 500kg 1t 2t Compression Sensor

Click here to download datasheet
