Specifications
Brand Name :
Forsentek
Model Number :
FXFE
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
999pcs/month
Delivery Time :
5~30 working days
Packaging Details :
Carton
Usage :
Force Measurement
Load Direction :
Compression
Capacity :
50kg 100kg 200kg 500kg 1000kg
Structure :
Flange-to-Flange
Principle :
Strain Gauge Load Cell
Output :
0-10V
Material :
Stainless Steel
Description

50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output

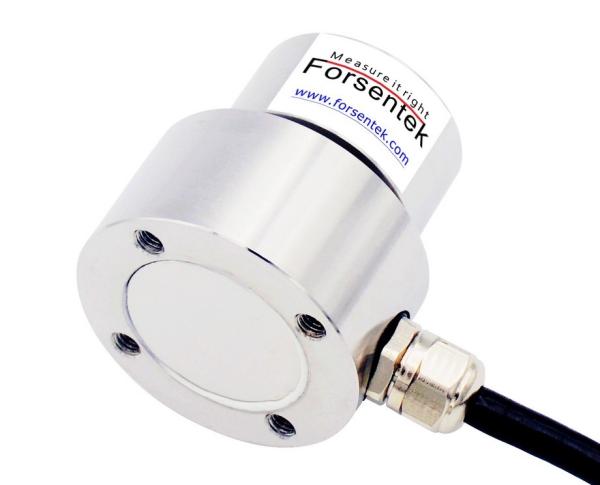

Flange Type Compression Load Cell FXFE is made from stainless steel based on proven strain gauge technology, it offers 50kgf / 100kgf / 200kgf / 500kgf / 1000kgf five rated capacities intended for pressure force measurement. The flanged surface enables it to be easily mounted between two assemblies. Force Transducer FXFE uses a built-in amplifier circuit to convert the mV signal from the wheatstone bridge into 0-10V output, which can be easily recognized and processed.

50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output

Specifications

Capacity

50kg / 100kg / 200kg / 500kg / 1000kg

500N / 1kN / 2kN / 5kN / 10kN
Rated output 0-10V
Excitation 15-24V DC
Zero balance <0.06V
Nonlinearity ±0.5% of capacity
Hysteresis ±0.5% of capacity
Nonrepeatability ±0.2% of capacity
Creep(5min) ±0.1% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Operating temperature -10...+50oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Ingress protection IP65
Material of element Stainless steel
Cable Ø5*2000mm 4-core shielded cable

50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output

50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output
Click here to download datasheet
