Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor
Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor
Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor
Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor
Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor
Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor
Specifications
Brand Name :
Forsentek
Model Number :
FMXD
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
25000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Tension/Compression force measurement
Type :
Low profile load cell
Output :
Analog Sensor
Capacity :
10kg/30kg/50kg/100kg
Description

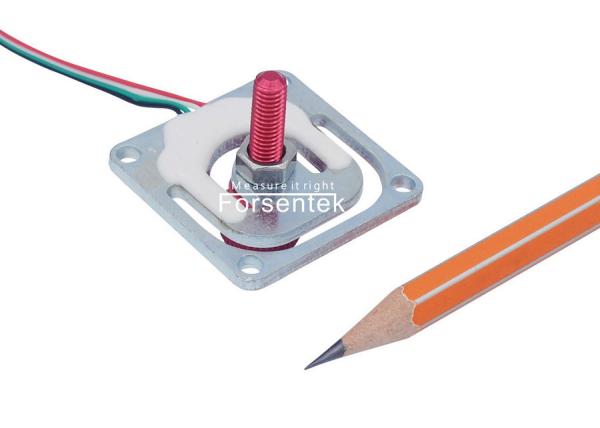

Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor

Ultra thin tension compression load cell FMXD utilizes strain gauge technology which are bonded on to the alloy steel sensing body.Ultra thin load cell FMXD is available in 0~100N / 0~300N / 0~500N / 0~1000N four measuring ranges with maximum 0.1% F.S. non-linearity, it offers an accurate & low cost measurement solution for high volume applications.The 5.1mm thru hole located in the center of load cell can be used to mounting attachments to adapt to different applications. With its compact design, transducer FMXD low profile force sensor is suitable for applications where vertical space is limited,it is ideal for use in robotics,process control and automotive applications,etc..Custom made service is available for other measuring ranges with similar structure.

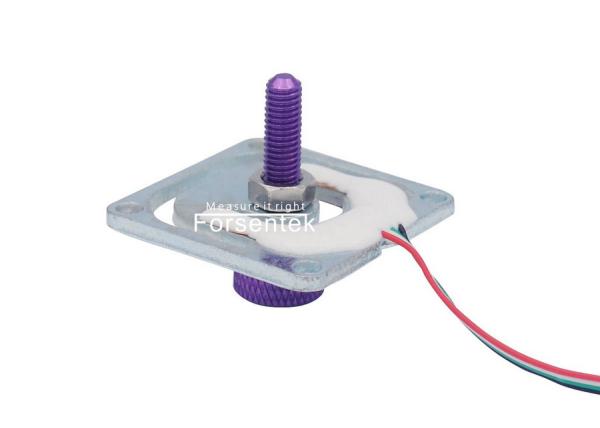

Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor

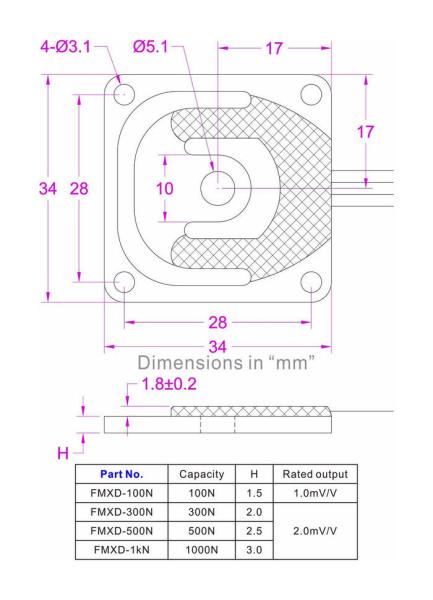

Dimensions(in "mm")

Ultra thin tension compression load cell 10kg 30kg 50kg 100kg Rod end force sensor

Specifications

Capacity

100N / 10kg / 20 lb
300N / 30kg / 65 lb
500N / 50kg / 110 lb

1000N / 100kg / 220 lb
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.3mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(3min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+50oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Alloy steel
Cable AWG32*110mm
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-
