Specifications
Brand Name :
Forsentek
Model Number :
FSRG
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
4~25 working days
Packaging Details :
Carton
Usage :
Tension compression force measurement
Theory :
Strain gauge load cell
Output :
Analog Sensor
Capacity :
25kg~10ton(50lb~20klb)
Material :
Stainless steel
Description

Rice Lake RL20000SS S type load cell 500lb 300lb 200lb 100lb 50lb

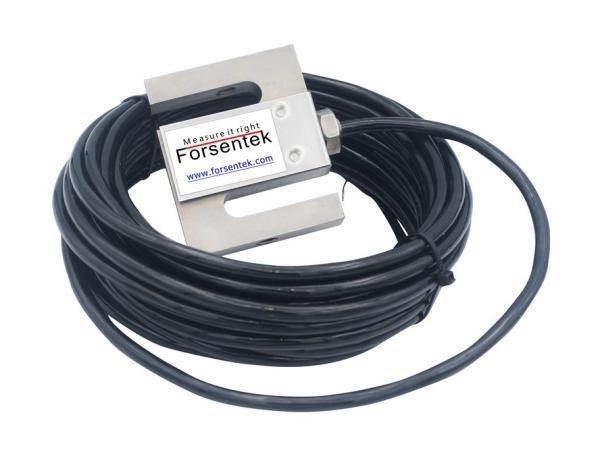

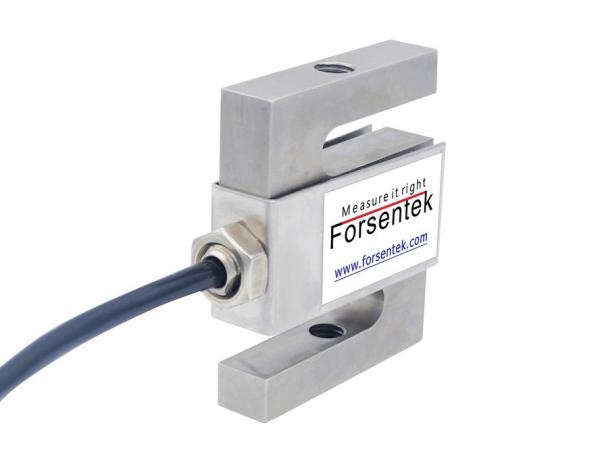

Tension/compression S-type load cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for tension compression force measurement,it is available in a wide range of capacities from 25kg to 10 ton (50lb to 20k lb).Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available.Model FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find model FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, ptglobal PT4000, Rice Lake RL20000SS, VPG Sensortronics 60050,Rice Lake RL20000ST with lower cost but uncompromised quality.

Rice Lake RL20000SS S type load cell 500lb 300lb 200lb 100lb 50lb

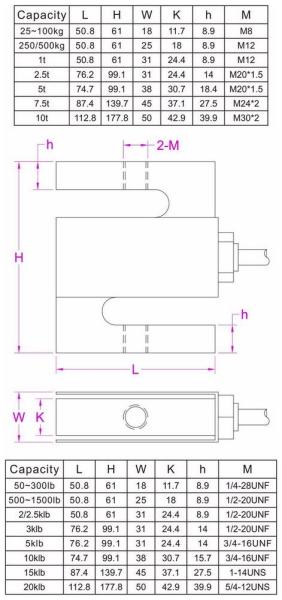

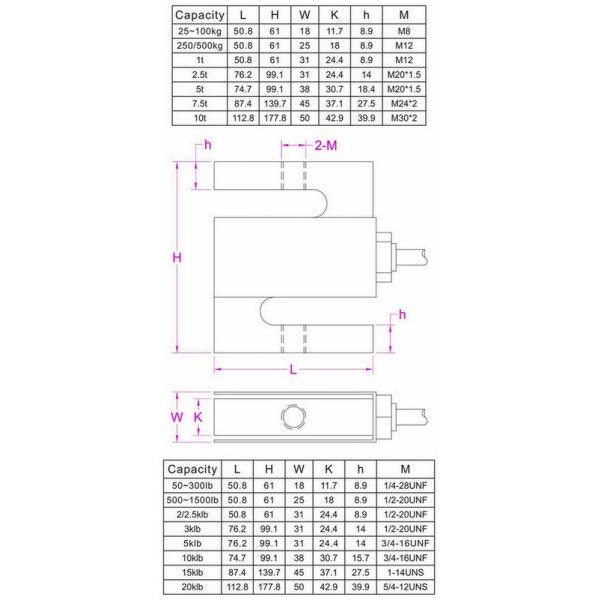

Dimensions(in milimeter)

Rice Lake RL20000SS S type load cell 500lb 300lb 200lb 100lb 50lb

Specifications

Capacity

25kg~10ton (50lb~20klb)
Rated output 3.0 mV/V
Excitation 3-15V
Zero balance ±0.03mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 250% F.S.
Compensated temperature -10...+40oC
Operating temperature -35...+65oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 430±60 ohms
Output resistance 352±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP67
Material of element Stainless steel
Cable

Ø5*6000mm 4-core shielded cable
Wiring code

Red--Exc+ Black--Exc-
Green---Sig+ White--Sig-

Stainless steel s beam load cell 50lb 100lb 200lb 300lb 500lb 1k lb 2klb 3k lb 5klb 10k lb 20klb
