Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer
Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer
Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer
Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer
Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer
Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer
Specifications
Brand Name :
Forsentek
Model Number :
FCFK
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3200pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Pressure Force Measurement
Capacity :
10N 20N 50N 100N 200N
Type :
Micro Column Load Cell
Connection :
Flange to Flange
Output :
Analog Sensor
Description

Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer

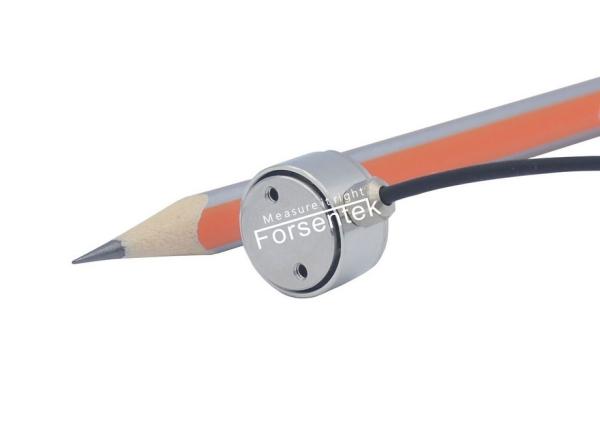

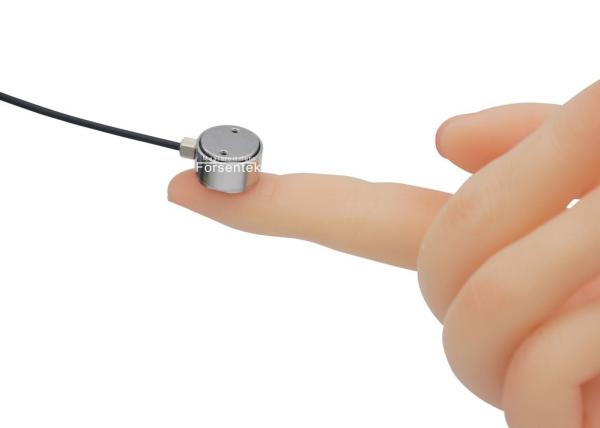

Micro force sensor FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity.Small size flat load cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N five measuring ranges to choose from,flange to flange mounting,compact design,you may find force transducer FCFK applicable for compression force measurement applications with limited mounting space,such as mold clamping force measurement,assembly force monitoring,force distribution test,etc..

Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer

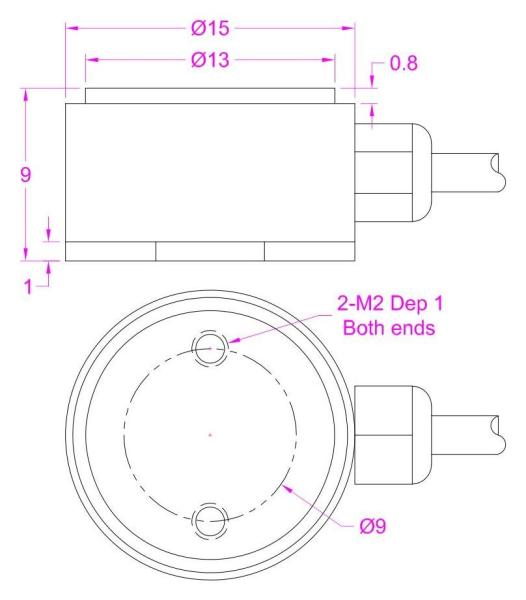

Dimensions(in milimeter)

Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer

Ordering code Measurement Range Force direction
FCFK-10N 0-10N/0-2.2lb Compression
FCFK-20N 0-20N/0-4.4lb
FCFK-50N 0-50N/0-0-10lb
FCFK-100N 0-100N/0-20lb
FCFK-200N 0-200N/0-45lb

Specifications

Capacity

10N / 20N / 50N / 100N / 200N
1kg / 2kg / 5kg / 10kg / 20kg
2.2lb / 4.4lb / 10lb / 20lb / 45lb
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer

Micro force sensor 10N 20N 50N 100N 200N Miniature compression force measurement transducer

Click here to download datasheet
