Miniature shaft rotary torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM torque measurement

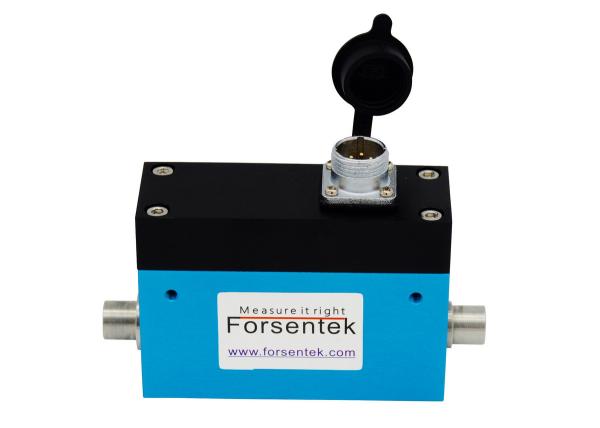

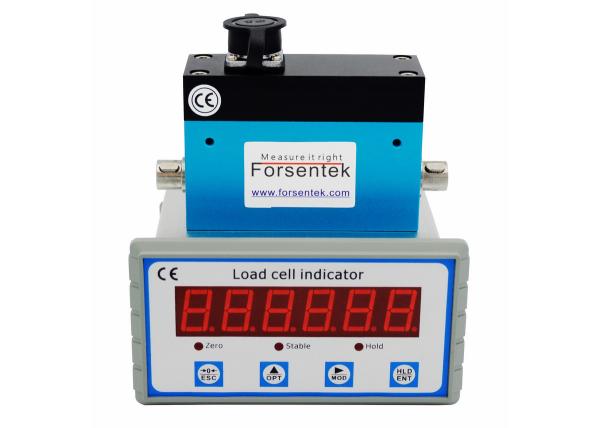

Small size rotary torque transducer FY02 is a slip-ring type torque transducer intended for rotating torque measurement in both clockwise and anticlockwise direction,slip rings are used to conduct the millivolt signal from the wheatstone bridge bonded on the sensing shaft which rotates together with motor shaft and gets the torque measured with maximum 0.2% non-linearity of the full capacity. Dynamic torque meter FY02 offers 0.1NM / 0.2NM / 0.5NM / 1NM / 2NM / 3NM / 5NM seven rated capacities to choose from. Keyed shafts located on both ends of the sensor can be connected to motor shaft and load shaft through couplings. Rotating speed of model FY02 goes up to 4000RPM, signal conditioner and display unit is also available at Forsentek. Typical applications for this type of torque cell are for example servo motor torque measurement, torque control for blenders, test bench applications, screw driver calibration, actuator test,etc..

Miniature shaft rotary torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM torque measurement

Dimensions

Miniature shaft rotary torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM torque measurement
Specifications

Capacity

0.1N*M / 0.88 lbf-in / 1kgf*cm

0.2N-M / 1.77 lbf-in / 2 kg*cm

0.5N*M / 4.4 lbf*in / 5kg-cm

1N-M / 8.8 lb-in / 10kgf-cm

2N*M / 17.7 lbf*in / 20 kg*cm

3NM / 26.5 lbf-in / 30 kgf*cm

5N-M / 44 lbf-in / 50kg*cm
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.02% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP40
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded cable
Wiring code

Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-

A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque, rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque which is also known as reaction torque.Digital meter can be used to display the torque value,digital indicator FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
