M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor

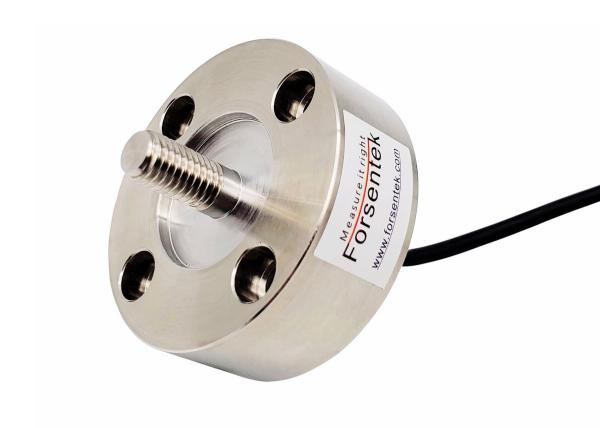

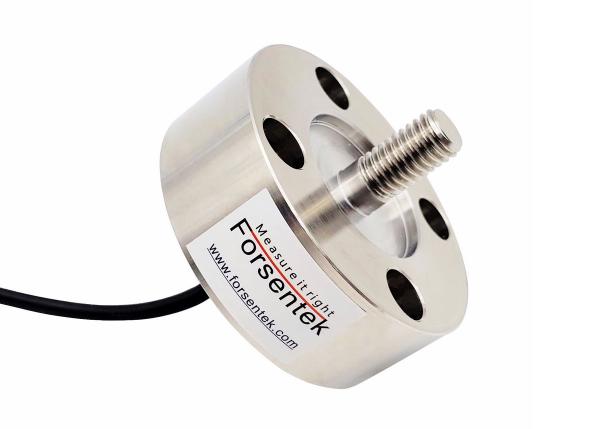

Rod end tension compression force sensor FCL is made of stainless steel based on strain gauge technology with 100N / 200N / 300N / 500N / 1kN / 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN rated capacities to choose from. The threaded rod on the top of the sensor can be used to mount attachments such as load buttons and eye bolts for different applications. Compared to universal side cable outlet, force transducer FCL adopts bottom cable outlet which helps save the mounting space, tension compression load cell FCL is suitable for in-line force measurement. Modification or customization is available if the existing specifications are not applicable.

M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor 0-50kN

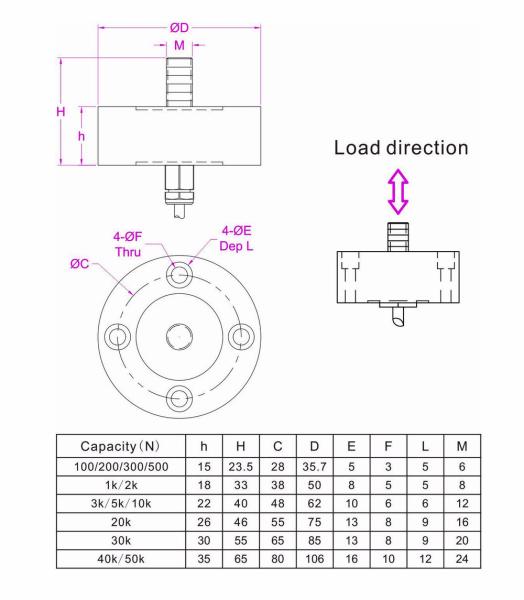

Dimensions(Unit in milimeter)
M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor 0-50kN
Specifications

Capacity

10kg / 100N / 22 lbf
20kg / 200N / 44lb
30kg / 300N / 66 lb
50kg / 500N / 110 lbf
100kg / 1kN / 220lbf
200kg / 2kN / 440 lb
300kg / 3kN / 660lb
500kg / 5kN / 1.1klb
1000kg / 10kN / 2.2 klb
2000kg / 20kN / 4.4klb
3000kg / 30kN / 6.6k lb
5000kg / 50kN / 11k lb
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*2000mm 4-core shielded cable

Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-


M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor
M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor 0-50kN

Click here to download datasheet
