Flange torque sensor for Mixer agitator torque monitoring and control
Flange torque sensor for Mixer agitator torque monitoring and control
Flange torque sensor for Mixer agitator torque monitoring and control
Flange torque sensor for Mixer agitator torque monitoring and control
Flange torque sensor for Mixer agitator torque monitoring and control
Flange torque sensor for Mixer agitator torque monitoring and control
Specifications
Brand Name :
Forsentek
Model Number :
FTHC
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Usage :
Agitator torque measurement
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Capacity :
5NM 10NM 20NM 30NM 40NM
Description

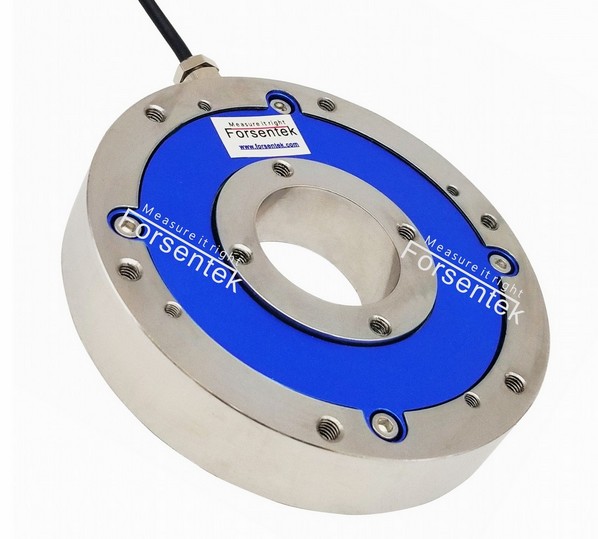

Flange torque sensor for Mixer agitator torque monitoring and control

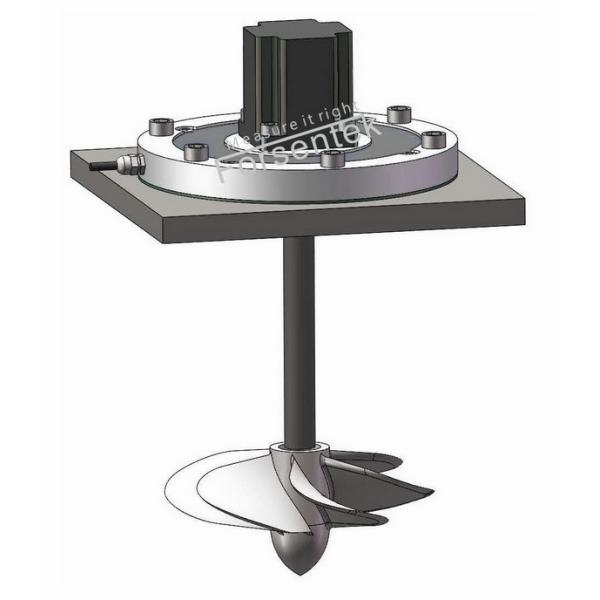

Mixer agitator torque monitoring sensor FTHC is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated output,model FTHC offers 5NM / 10NM / 20NM / 30NM / 40NM measuring ranges to choose from.Low profile design,through hole structure,flange to flange mounting,working with servo or stepper motor,joint torque sensor FTHC can help make robot joint motion control more smoother,you may also find model FTHC applicable for agitator mixing torque control.Besides the standard specifications,custom made service according to client's specific requrements is also available at Forsentek.

Flange torque sensor for Mixer agitator torque monitoring and control
Specifications

Rated capacity

5NM 10NM 20NM 30NM 40NM(Customizable)
Rated output 1.0 mV/V
Excitation 3-12V
Zero balance ±3% F.S.
Non-linearity ±0.3% F.S.
Hysteresis ±0.3% F.S.
Non-repeatability ±0.1% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.01% F.S./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Stainless steel
Cable Ø3.2*3000mm 4-core shielded cable
Wiring code

Red--Exc+ Black--Exc-

Green--Sig+ White--Sig-

Flange torque sensor for Mixer agitator torque monitoring and control

Flange torque sensor for Mixer agitator torque monitoring and control

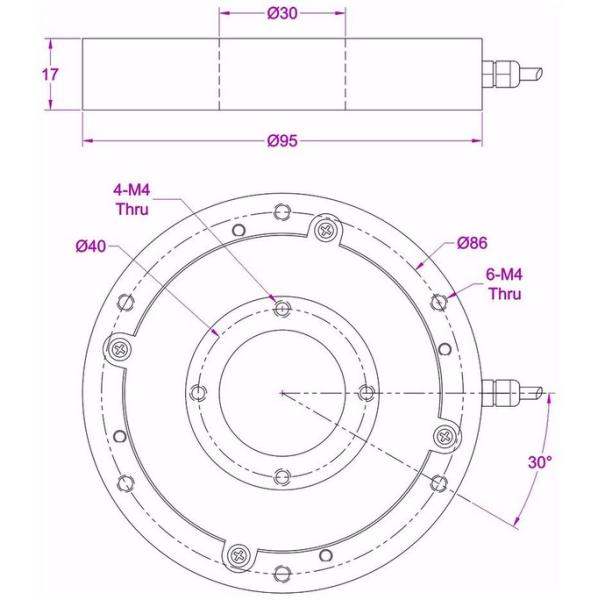

Dimensions(unit in milimeter,customizable)

Flange torque sensor for Mixer agitator torque monitoring and control

Flange torque sensor for Mixer agitator torque monitoring and control
