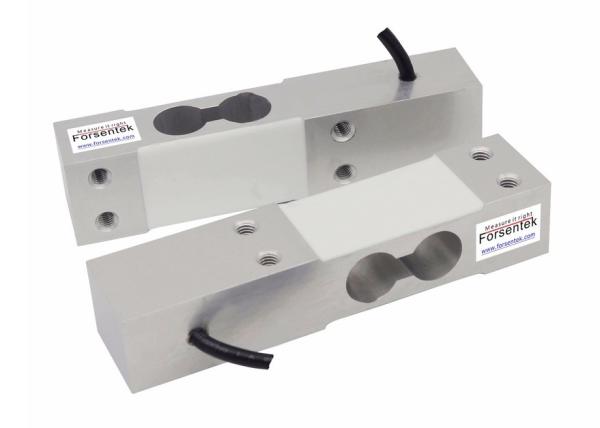

0-10V load cell 0-20kg weight measurement load sensor with built in amplifier
0-10V load cell 0-20kg weight measurement load sensor with built in amplifier
0-10V load cell 0-20kg weight measurement load sensor with built in amplifier
0-10V load cell 0-20kg weight measurement load sensor with built in amplifier
Specifications
Brand Name :
Forsentek
Model Number :
FAHB
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
20-40 working days
Packaging Details :
Carton
Theory :
Strain gauge load cell with built in amplifier
Output :
0-5V/0-10V/4-20mA
Capacity :
5kg 10kg 20kg 30kg 40kg
Description

0-10V load cell 0-20kg weight measurement load sensor with built in amplifier

Load cell with internal amplifer can output 0-5V / 0-10V / 4-20mA signal for easy signal processing,model FAHB offers 5kg / 10kg / 20kg / 30kg / 40kg measuring ranges to choose from,custom design service is available for other capacities and specifications.The specially designed amplifier board has very small size which makes it possible to get it integrated into a beam type load cell with small modifications to the sensor size.Load cell with internal ampifier has many advantages such as compact design,easy to implement,lower cost compared to load cell with external amplifier.

0-10V load cell 0-20kg weight measurement load sensor with built in amplifier

Specifications

Capacity

5kg 10kg 20kg 30kg 40kg

(Customizable)
Rated output 0-5V/0-10V/4-20mA
Excitation 12V/24V DC
Zero balance ±3% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(3min) ±0.05% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Aluminum alloy
Cable Ø4*1000mm 4-core shielded cable
Wiring code

3-wire for voltage output

2-wire for current output

Dimensions(unit in "mm)

0-10V load cell 0-20kg weight measurement load sensor with built in amplifier

0-10V load cell 0-20kg weight measurement load sensor with built in amplifier
