Press force load cell 2kN 3kN 5kN 10kN 20kN with flange mounting Press force sensor
Press force load cell 2kN 3kN 5kN 10kN 20kN with flange mounting Press force sensor
Press force load cell 2kN 3kN 5kN 10kN 20kN with flange mounting Press force sensor
Press force load cell 2kN 3kN 5kN 10kN 20kN with flange mounting Press force sensor
Specifications
Brand Name :
Forsentek
Model Number :
FFD
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2450pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Compression force measurement
Type :
Flange type press load cell
Output :
Analog Sensor
Capacity :
2kN 3kN 5kN 10kN 20kN
Mounting :
Flange to flange
Description

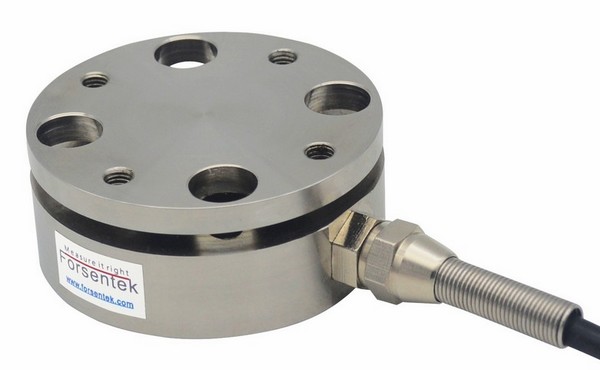

Press force load cell with flange mounting Press force sensor

Flange type press force sensor FFD is made of stainless steel based on strain gauge technology intended for both compression and tension force measurement,force sensor FFD offers 2kN / 3kN / 5kN / 10kN / 20kN five different rated capacities to choose from,which delivers maximum 0.2% non-linearity of the rated output.Low profile design with only 25mm total height,flange-to-flange structure enables FFD to be easily and firmly connected to force applying mechanism,you may find transducer FFD suitable for applications such as hand press force verification,actuator force control,assembly force checking,spring testing,hydraulic cylinder thrust measurement,ultrasonic welding clamp force control,and so on.

Press force load cell 2kN 3kN 5kN 10kN 20kN with flange mounting Press force sensor

Specifications

Capacity

2kN / 200kg

3kN / 300kg

5kN / 500kg

10kN / 1000kg

20kN / 2000kg
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±100 ohms
Output resistance 702±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded cable

Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

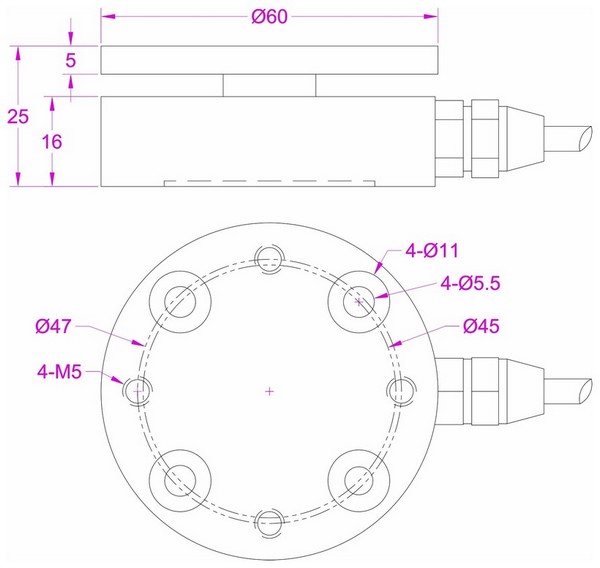

Dimensions(unit in "mm")

Press force load cell 2kN 3kN 5kN 10kN 20kN with flange mounting Press force sensor

Click here to download datasheet
