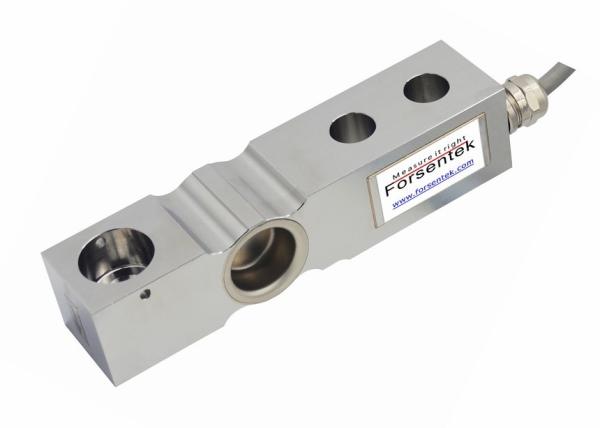

Stainless steel load cell IP68 waterproof load cell sensor for platform scales
Stainless steel load cell IP68 waterproof load cell sensor for platform scales
Stainless steel load cell IP68 waterproof load cell sensor for platform scales
Stainless steel load cell IP68 waterproof load cell sensor for platform scales
Specifications
Brand Name :
Forsentek
Model Number :
FHSR
Place of Origin :
China
MOQ :
3pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Material :
Stainless steel
Theory :
Resistance Sensor
Output :
Analog Sensor
Capacity :
110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg
Description

Stainless steel load cell IP68 waterproof load cell sensor for platform scales

Shear beam load cell FHSR is made of stainless steel with IP68 waterproof using laser welding technology which makes it suitable for both indoor and outdoor weighing applications with harsh environment.High accuracy load cell FHSR offers 110kg / 220kg / 550kg / 1100kg / 1760kg / 2200kg / 4400kg seven different measuring ranges to choose from,weight sensor FHSR delivers maximum 0.02% non-linearity of the rated output.You may find loadcell FHSR applicable for applications such as tank weighing,hopper weighing,batching or platform scales as well as for level monitoring,etc..

Stainless steel load cell IP68 waterproof load cell sensor for platform scales

Specifications

Capacity 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg
Rated output 1.94mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.02% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+65oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 390±30 ohms
Output resistance 352±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.4*3000mm
Wiring code

Blue--Exc+ Black--Exc-

Green--Sen+ Grey--Sen-

White--Sig+ Red--Sig-

Dimensions(Unit in "mm")

Stainless steel load cell IP68 waterproof load cell sensor for platform scales

Stainless steel load cell IP68 waterproof load cell sensor for platform scales
