High accuracy load cell for medical infusion bag weighing sensor
High accuracy load cell for medical infusion bag weighing sensor
High accuracy load cell for medical infusion bag weighing sensor
High accuracy load cell for medical infusion bag weighing sensor
High accuracy load cell for medical infusion bag weighing sensor
High accuracy load cell for medical infusion bag weighing sensor
Specifications
Brand Name :
Forsentek
Model Number :
FS12
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3500pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Load cell for force gauges
Type :
Tension sensor
Output :
Analog transducer
Load direction :
Tension and compression
Capacity :
10N/20N/50N/100N/200N/500N
Connection :
M5 threaded hole
Description

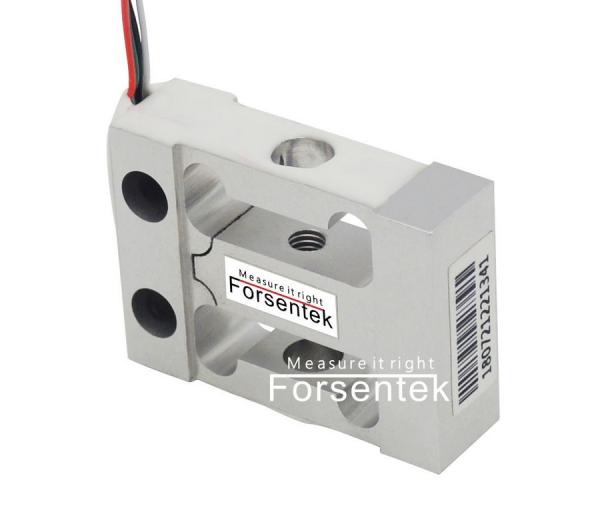

High accuracy load cell for medical infusion bag weighing sensor

Side mounted high accuracy load cell FS12 is strain gauge based to deliver maximum 0.05% non-linearity of the rated output,force sensor FS12 only weighs about 35g thanks to its aluminum construction.Model FS12 offers 10N / 20N / 50N / 100N / 200N / 500N six different measuring ranges to choose from,it can be used for both tension and compression force measurement,the compact design enables the FS12 to be easily embedded into machinery or test equipment.You may find model FS12 applicable for force gauges,medical infusion bag weighing,etc..

High accuracy load cell for medical infusion bag weighing sensor

Specifications

Capacity 10N 20N 50N 100N 200N 500N
Rated output 1.0±10%mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.05% R.O.
Hysteresis ±0.05% R.O.
Nonrepeatability ±0.02% R.O.
Creep(5min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 395±20 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable AWG32*180mm
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

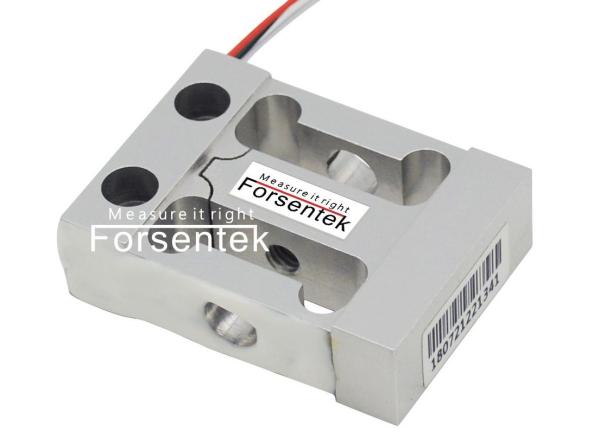

Medical infusion bag weighing load cell 10N 20N 50N 100N 200N 500N

High accuracy load cell for medical infusion bag weighing sensor

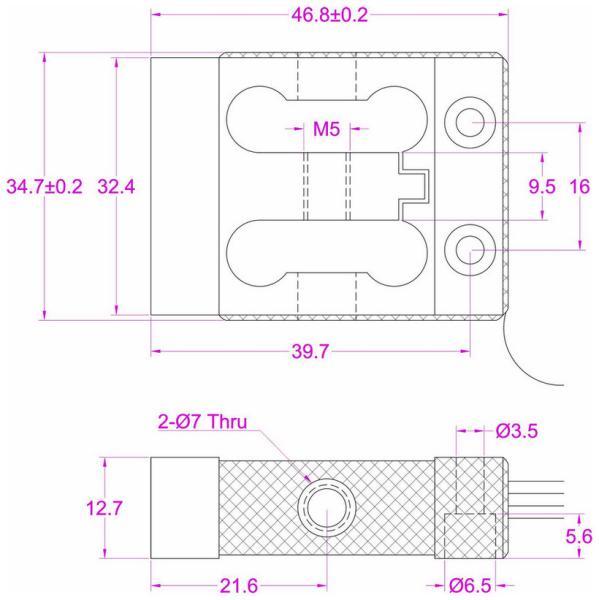

Dimensions(Unit in "mm")

High accuracy load cell for medical infusion bag weighing sensor

Click here to download datasheet
