Non-contact rotary torque transducer for servo motor torque measurement
Non-contact rotary torque transducer for servo motor torque measurement
Non-contact rotary torque transducer for servo motor torque measurement
Non-contact rotary torque transducer for servo motor torque measurement
Non-contact rotary torque transducer for servo motor torque measurement
Non-contact rotary torque transducer for servo motor torque measurement
Specifications
Brand Name :
Forsentek
Model Number :
FYTE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2650pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Usage :
Rotating torque measurement
Type :
Contactless torque sensor
Output :
±5V/±10V/4-20mA
Torque measurement direction :
Clockwise&Anti-clockwise
Capacity :
0-500N*m
Description

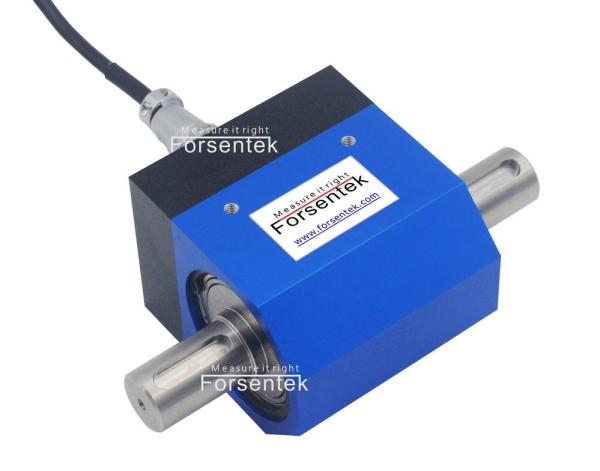

Non-contact rotary torque transducer for servo motor torque measurement

Non-contact rotary torque transducer FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 1N*M / 2NM / 3N*M / 5NM / 10NM / 20NM / 30NM / 50N*M / 100NM / 200NM / 300NM / 500N*M twelve measuring ranges with maximum 8000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.

Non-contact rotary torque transducer for servo motor torque measurement
Specifications

Capacity

1N*M / 8.8 lbf-in / 0.74 lbf-ft

2NM / 17.7 lb*in / 1.5 lb-ft

3N-M / 36.5 lbf*in / 2.2 lb*ft

5NM / 44lbf-in / 3.7lb*ft

10N*m / 88 lb*in / 7.4 lbf-ft

20NM / 177 lbf*in / 15 lb-ft

30NM / 265lbf*in / 22 lb*ft

50N*M / 442 lb-in / 37 lbf*ft

100NM / 885 lb*in / 74lbf*ft

200N-M / 1770 lbf-in / 147 lbf-ft

300NM / 2655 lbf*in / 221 lb-ft

500N-m / 4425 lbf-in / 368 lb*ft
Rated output ±5V / ±10V / 4-20mA
Excitation 24V DC (or 12V DC)
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temp. -10...+60oC
Ingress protection IP50
Material of element Stainless steel
Material of housing Aluminum
Cable Ø6*3000mm(Mating connector provided)

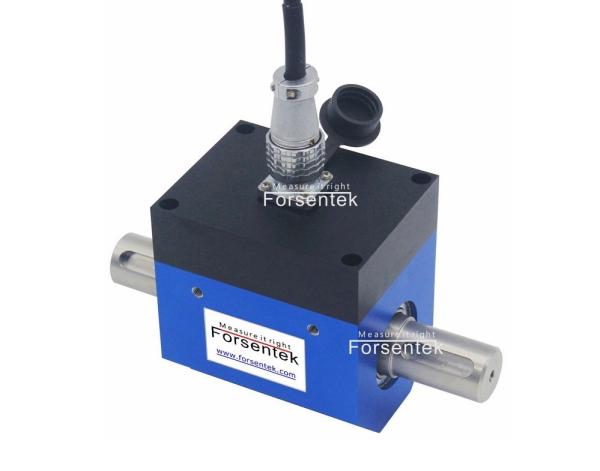

Shaft to shaft non-contact torque sensor for motor torque speed measurement

Non-contact rotary torque transducer for servo motor torque measurement

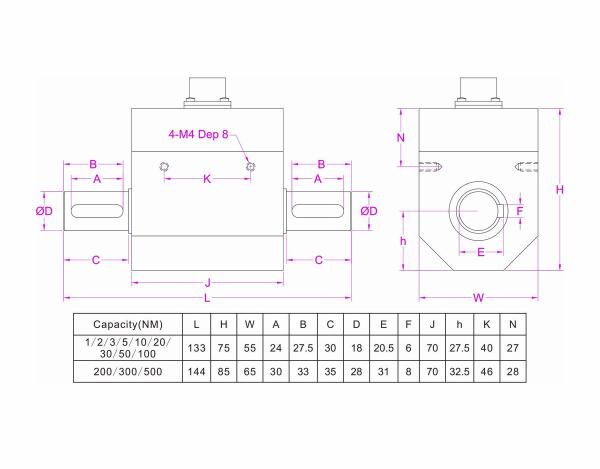

Dimensions

Non-contact rotary torque transducer for servo motor torque measurement

Click here to download datasheet
