Specifications
Brand Name :
Forsentek
Model Number :
FSSM
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1865pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Force measurement
Type :
Miniature force sensor 200N
Output :
Analog Sensor
Capacity :
10N 20N 50N 100N 200N 300N 500N 1KN
Force direction :
Tension/compression
Structure :
S type load cell
Connection :
M3/M4 threaded hole
Description

Small size tension force sensor 200N tensile force measurement transducer

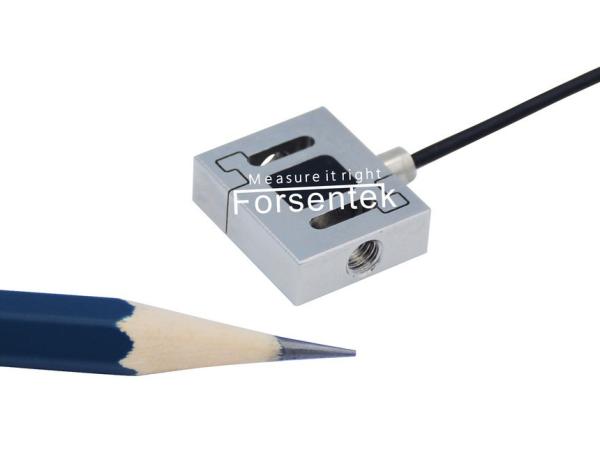

Small size tension force sensor FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of the full scale,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited mounting space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

Small size tension force sensor 200N tensile force measurement transducer

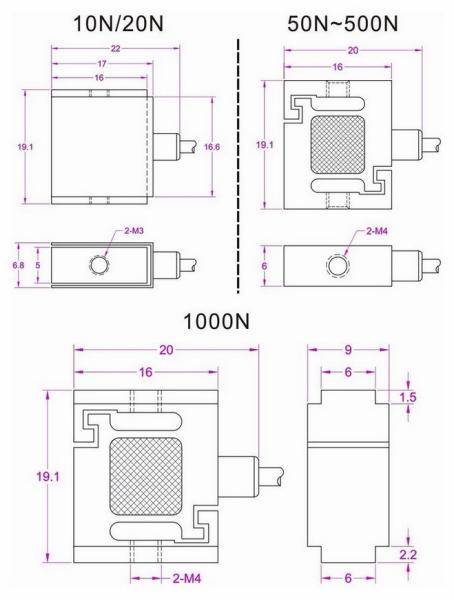

Dimensions(in milimeter)

Small size tension force sensor 200N tensile force measurement transducer

Ordering code

Part No. Force measuring range Force measurement direction
FSSM-10N 0-10N / 0-1kgf Tension/compression
FSSM-20N 0-20N / 0-2kgf
FSSM-50N 0-50N / 0-5kgf
FSSM-100N 0-100N / 0-10kgf
FSSM-200N 0-200N / 0-20kgf
FSSM-300N 0-300N / 0-30kgf
FSSM-500N 0-500N / 0-50kgf
FSSM-1kN 0-1000N / 0-100kgf

Specifications

Capacity 10N / 1kg / 2.2 lb
20N / 2kg / 4.4 lb
50N / 5kg / 10 lbf
100N / 10kg / 20 lbf
200N / 20kg / 45 lbf
300N / 30kg / 65 lbf
500N / 50kg / 110 lbf
1kN / 100kg / 220 lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Small size tension force sensor 200N tensile force measurement transducer

Small size tension force sensor 200N tensile force measurement transducer

Click here to download datasheet
