M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
Specifications
Brand Name :
Forsentek
Model Number :
FS6A/FS6B
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3750pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Price :
39usd/pc
Usage :
Compression tension force measurement
Type :
S type load cell
Connection :
M8/M12 threaded hole
Output :
Analog Sensor
Capacity :
10lb 20lb 40lb 60lb 110lb 220lb 440lb 660lb
Description

M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor

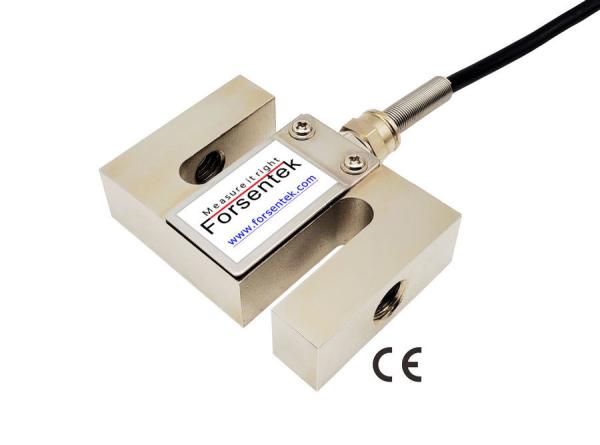

M8 threaded universal S Beam Load Cell FS6A/FS6B is strain gauge based intended for tension and compression force measurement. S Type Load Cell FS6A/FS6B offers 0-11lb / 0-22lb / 0-44lb / 0-66lb / 0-110lb / 0-220lb / 0-440lb / 0-660lb eight rated measuring ranges to choose from. M8/M12 metric threaded holes located on both ends can be used to mount attachments such as eye bolts and hooks for adapt to different cases. S type force transducer FS6A/FS6B offers an accurate and affordable measuring solution for applications such as material testing machines, hanging scales, hopper weighing, automation equipment and so on.

M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
Dimensions
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor
Specifications

Capacity

5kg / 50N / 11 lb

10kg / 100N / 22 lbf

20kg / 200N / 44 lb

30kg / 300N / 66 lbf

50kg / 500N / 110 lbs

100kg / 1kN / 220 lb

200kg / 2kN / 440 lbf

300kg / 3kN / 660 lb
Rated output 2.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.05% of full capacity
Hysteresis ±0.05% of full capacity
Nonrepeatability ±0.03% of full capacity
Creep(5min) ±0.03% of full capacity
Safe overload 150% of full capacity
Ultimate overload 200% of full capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 385±50 ohms
Output resistance 380±30 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Alloy steel
Cable Ø5 *2000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of S-beam load cell FS6A is around 2.0mV/V.
Power supply of S type force sensor FS6A is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FS6A is normally within -30mV...+30mV for tension and compression force measurement.
Example one: S type Load Cell FS6A-10kg with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: S beam force sensor FS6A-20kg with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example: S type force transducer FS6A-50kg working with -5-5V amplifier,the Force-Voltage relationship will be 0-50kg compression load VS 0-5V output, 0-50kg tension load VS 0-(-5V) output,which is linear regardless of the sensor error.

M8 Threaded S Type Force Sensor 10lb 20lb 50lb 100lb S Beam Load Cell
M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor

Click here to download datasheet

Product tags

force sensor load cell

,

load cell force sensor

,

1t load sensor
Send your message to this supplier
Send Now
