Miniature Tension Compression Load Cell 2lb 4lb 10lb 20lb 45lb Micro S Type Load Cell

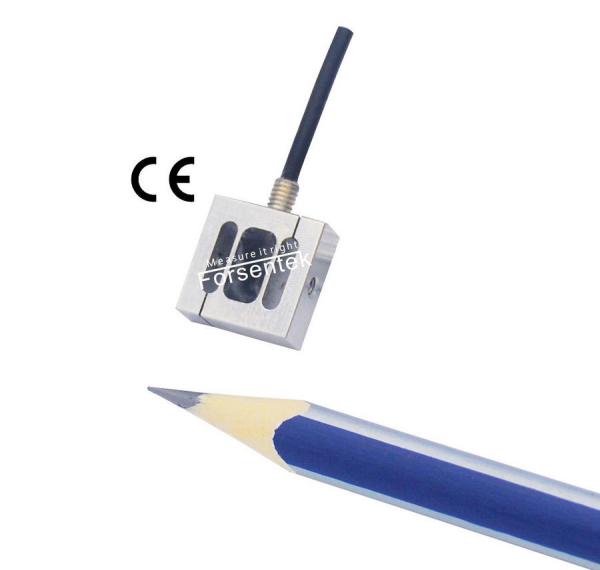

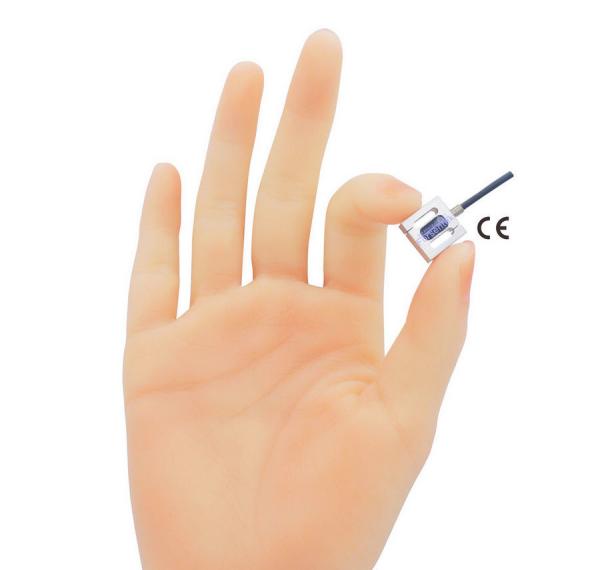

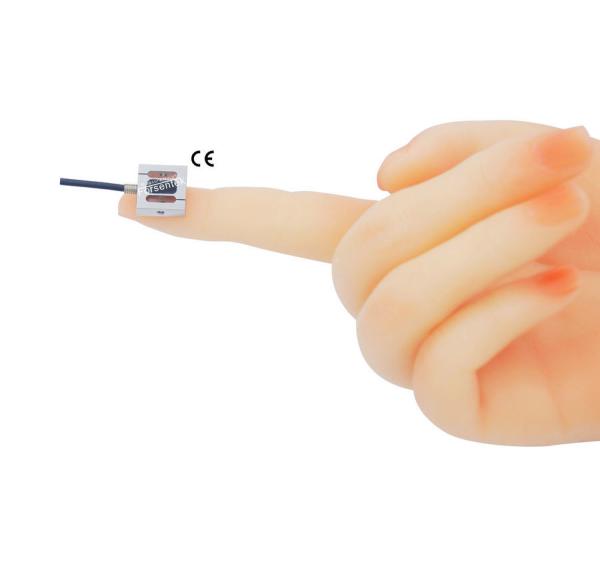

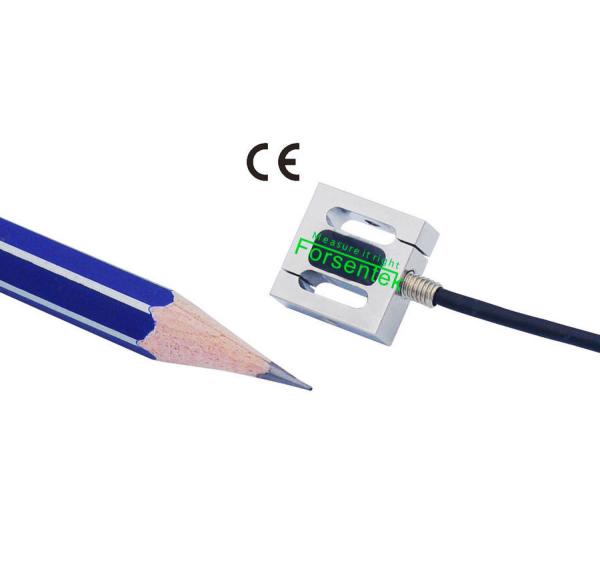

Miniature S Type Load Cell FSSQ offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and 5 capacity ranges 2.2lb / 4.4lb / 11lb / 22lb / 45lb to choose from.The jr s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity,the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The Micro S-Beam Force Transducer FSSQ features M2 threaded holes on two sides for the mounting of attachments or implements for both tension and compression force measurement in applications with limited space.

Miniature Tension Compression Load Cell 2lb 4lb 10lb 20lb 45lb Micro S Type Load Cell

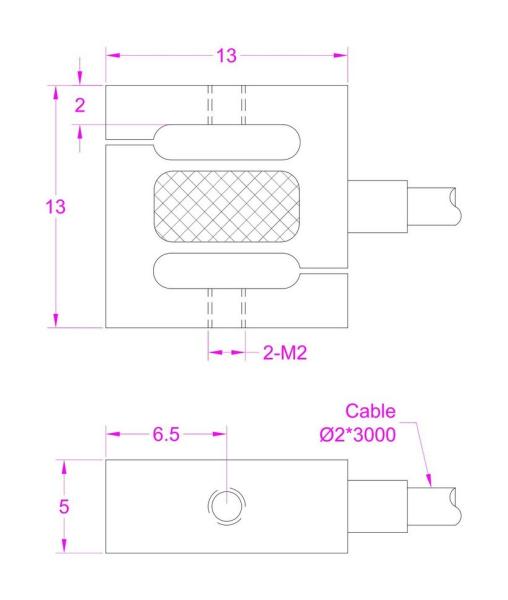

Dimensions(unit in "mm")

Miniature Tension Compression Load Cell 2lb 4lb 10lb 20lb 45lb Micro S Type Load Cell

Ordering code Measurement Range Force direction
FSSQ-10N 0-10N / 0-2.2lb Tension/Compression
FSSQ-20N 0-20N / 0-4.4 lb
FSSQ--50N 0-50N / 0-11 lb
FSSQ-100N 0-100N / 0-22lb
FSSQ-200N 0-200N / 0-45lb

Capacity 10N / 1kg / 2.2 lbf
20N / 2kg / 4.4 lbf
50N / 5kg / 11 lb
100N / 10kg / 22 lbf
200N / 20kg / 45 lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% of full capacity
Hysteresis ±0.2% of full capacity
Nonrepeatability ±0.1% of full capacity
Creep(5min) ±0.1% of full capacity
Safe overload 150% of full capacity
Ultimate overload 200% of full capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of S-beam load cell FSSQ is around 2.0mV/V.
Power supply of S type force sensor FSSQ is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FSSQ is normally within -24mV...+24mV for tension and compression force measurement.

A load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSQ-50N and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-50N compression load VS 0-5V output, 0-50N tension load VS 0-(-5V) output, 5V voltage corresponds to 50N compression load, -1V voltage corresponds to 10N tension force,and so on.
