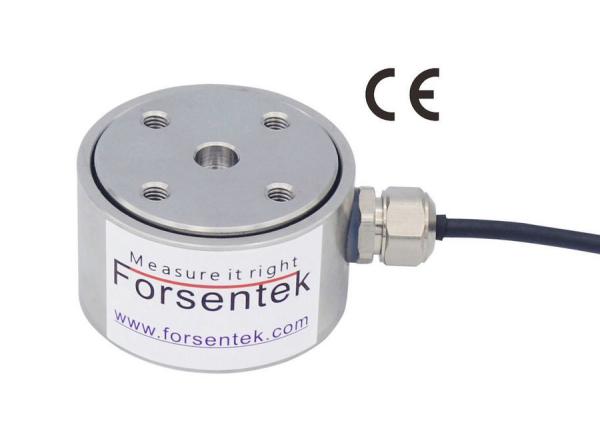

Flange-to-flange Compression Type Load Cell 200kg Column Compression Load Cell 500kg

Flange Type Compression Load Cell FFA is made of stainless steel utilizing strain gauge technology to deliver mV/V output with maximum 0.1% non-linearity of the full scale.Tension Compression Force Sensor FFA offers 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg / 0-2000kg seven rated measuring ranges to choose from, flange mounted force transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Cylindrical Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

Dimensions(Unit in "mm")

Specifications

Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of column load cell FFA is normally around 2.0mV/V.
Power supply of cylindrical load cell FFA is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of flange force sensor FFA is normally within 0-30mV(-30mV...+30mV for tension and compression force measurement).
Example one: Tension Compression Load Cell FFA-200kg with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
Example two: Tension and Compression Load Cell FFA-500kg with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.

A load cell amplifier can be used to deliver -5~5V, 0-10V or 4-20mA output. Example: Cylindrical compression load cell FFA-200kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-200kg compression load VS 0-10V output, 0-200kg tension load VS 0-(-10V) output which is linear. When you get 5V output,it means the current load is 100kg compression force,when you get -3V output,it means the current load is 60kg tension load,and so on.

Flange-to-flange Compression Type Load Cell 500kg Column Compression Load Cell 200kg

Click here to download datasheet
