Tri-axial Load Cell 500kg 300kg 200kg 100kg 50kg 30kg 3-Axis Force Load Cell

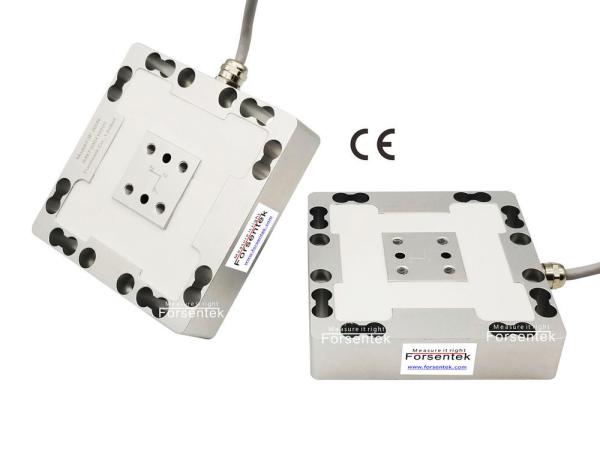

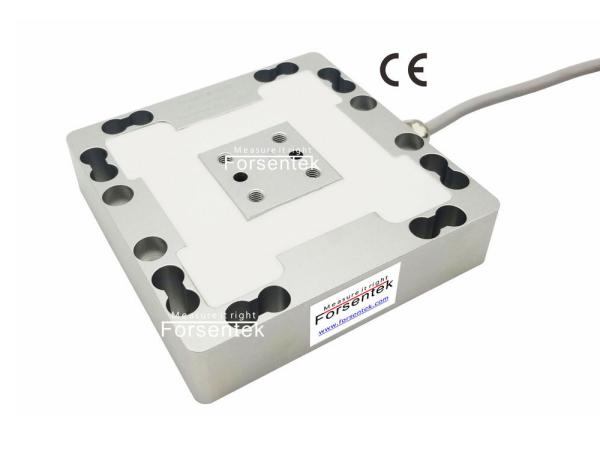

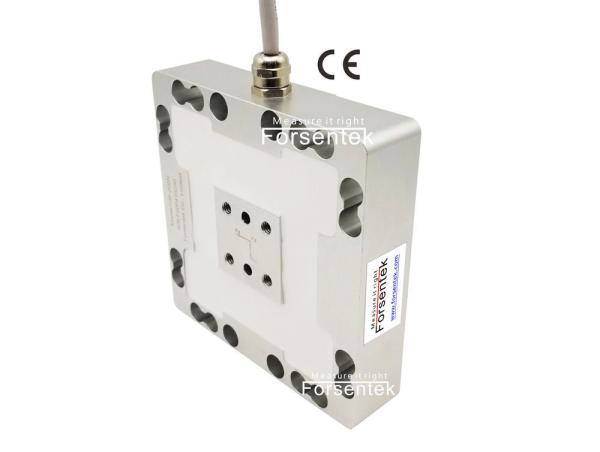

Low profile Triaxial Load Cell F3F is designed to measure force in Fx/Fy/Fz at the same time. Tri-axial force sensor F3F offers 0-20kg / 0-30kg / 0-50kg / 0-100kg / 0-200kg / 0-300kg / 0-500kg rated measuring ranges for each axis to choose from,each channel is able to measure force in both tension and compression direction.Compact design makes 3-component load cell F3F suitable for 3-axis force measurement applications with limited mounting space.You may find 3D force sensor F3F interchangeable with interface 3-axis force load cell 3A120 series. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Tri-axial Load Cell 500kg 300kg 200kg 100kg 50kg 30kg 3-Axis Force Load Cell
Dimensions(in milimeter)
Tri-axial Load Cell 500kg 300kg 200kg 100kg 50kg 30kg 3-Axis Force Load Cell
Specifications

Rated Capacity

200N / 45lb / 20kg
300N / 67lb / 30kg
500N / 112lb / 50kg
1000N / 225lb / 100kg
2000N / 450lb / 200kg
3000N / 674lb / 300kg
5000N / 1.12klb / 500kg
Sensitivity 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Non-repeatability ±0.1% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.03% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance 700±100 ohms
Output resistance 700±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element

0-1kN: Aluminum
2kN-5kN: Stainless steel
Cable Ø6*3000mm 12-core shielded
Wiring code 4-wire connection for each axis


​A 3-Axis Sensor is a force transducer that measures forces in Fx, Fy, Fz direction at the same time,each axis consists of a full wheatstone bridge to deliver mV/V output proportional to the applied load, a 3-channel load cell signal amplifier LC3A can be used to convert the mV signal into -5-5V, 0-10V, 4-20mA for easy signal processing. 3 axis load cell F3F can also be modified or customized as per client's request.
