Specifications
Brand Name :
Forsentek
Model Number :
LC3A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal in advance
Supply Ability :
2060pcs/month
Delivery Time :
3-10 working days
Packaging Details :
1pc/box
Type :
Analog
Input :
3 sensors
Output :
3 outputs
Description

Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter

3-Channel Load Cell Signal Conditioner LC3A can work with all our load cell sensors and torque transducers with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for further data acquisition. Multi-channel load cell signal conditioner LC3A has 3 inputs and 3 outputs,each channel supports Zero adjustment and Gain adjustment for loadcell calibration.Analog signal amplifier LC3A offers a compact signal processing solution for load measurement applications where multiple load cells are involved,especially suitable for signal amplification of 3-axis load cells.

Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter

Specifications

Function Turn mV signal into V or mA signal
Accuracy 0.15%
Power supply 24V DC or 12V DC
Output signal -5-5V,-10-10V,0-5V,0-10V,4-20mA,0-20mA
Excitation for load cell 5V DC
Applicable sensitivity 0.6mV/V~3mV/V
Working temperature -10...+60oC
Material of housing Aluminum
Ingress protection IP40

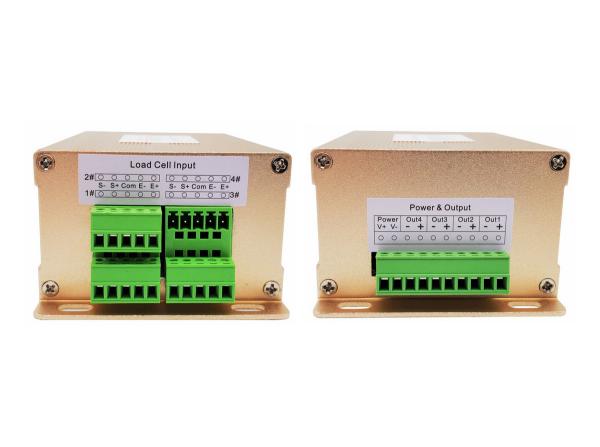

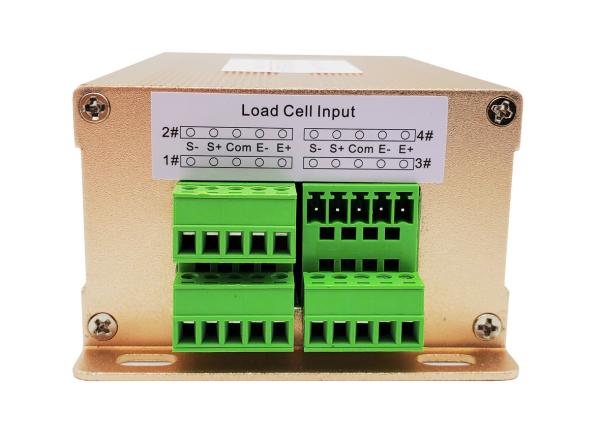

Input end of multi channel load cell signal amplifier LC3A

Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter

Power with output end of 3-channel load cell signal conditioner LC3A

Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter

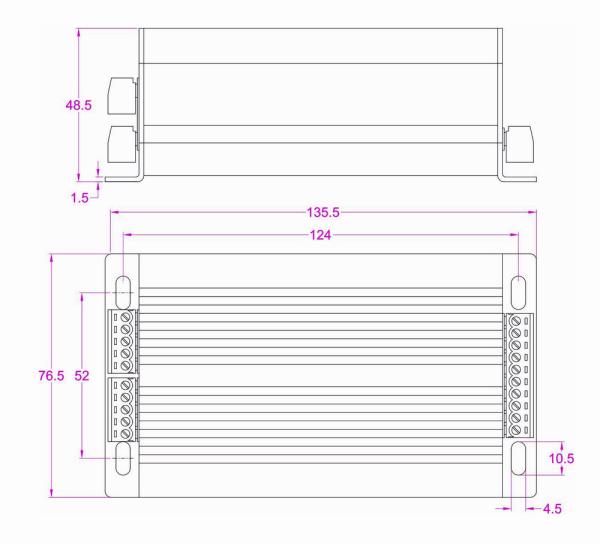

Dimensions(in mm)

Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter​

Click here to download datasheet
